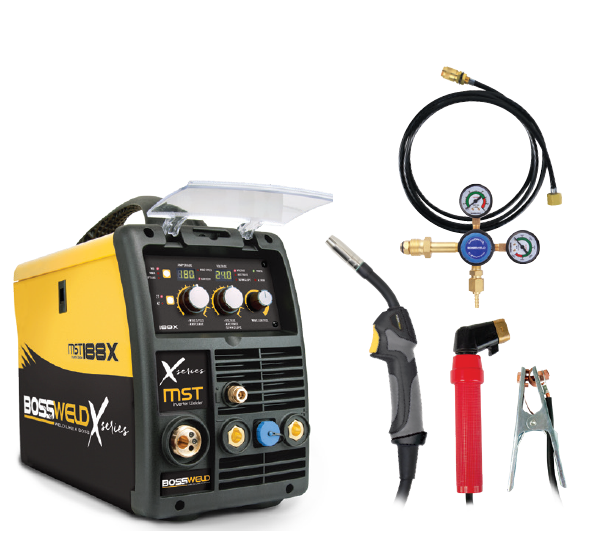

BOSS Multi Process Inverter MST 180amp Welder-Mig,Stick & Tig-XSeries-188X

The Bossweld MST 188X is a lightweight and portable multi process inverter based welder that gives the welder the possibility to MIG,
Stick and TIG weld from the same machine, making it the ideal choice for your next welding project.

KEY FEATURES

• Multiprocess Welder
• 180Amp
• Spool Gun Ready
• Spool Size - 1Kg & 5Kg
• Gas / Gasless Operation
• LCD Digital Display
• 2t / 4t Trigger Control
• DC TIG Lift Arc Function
• Stepless Control

IN THE BOX

• MST 188X Inverter Welder
• 3Mt Ergon BZ15 MIG Torch
• 3Mt Twist lock Electrode Holder
• 3Mt 200Amp Earth clamp
• Drive Rollers 1 x Mild Steel / 1 x Gasless
• 2Mt Gas Hose
• Bossweld Twin Gauge Regulator
• Operator Manual

SPECIFICATIONS

• Power Supply: 1 Phase 240V 10amp
• Duty Cycle @ 40°c : 10% @ 180A
• Open Circuit Voltage: 58.5V
• Output Current Range MIG: 40-180 Amps
• Output Current Range MMA: 10-180 Amps
• I Max MIG: 37.5A
• I Max MMA: 44A
• I Max TIG: 28.5A
• I ieff MIG/MMA/TIG: 15A
• Protection Class: IP21
• Insulation Class: H
• Max MIG Wire Diameter: 0.6-1.0mm
• Electrode Diameter Range: 1.6mm-3.2mm
• Thermal Overload Protected: Yes
• For use with generators: Yes 8.5kva +
• Dimensions: 550x215x395mm
• Power Source Weight: 12.5Kg
• Power Source Warranty: 3 Years
• Max Plate Thickness: 8mm Aluminium, 10mm Stainless & Steel,8mm Cast Iron, 6mm Brass
