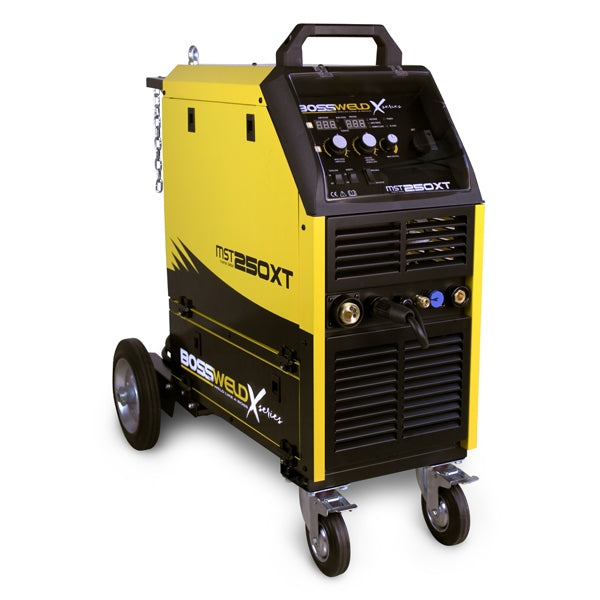

BOSS Multi Process Inverter MST 250amp Welder-Mig,Stick & Tig-XSeries-MST250XT

The Bossweld MST 250XT is a multi-process, inverter-based welder that provides the opportunity to MIG, Stick and TIG weld from the same machine. Heavy duty and designed for industrial use; the 250 Amps at 60% delivers ample power, and the front swivel wheels make it easy to manoeuvre.

• Single phase 240V
• 250 Amp output
• MIG /Stick /TIG welder
• Suitable for industrial
• Digital LED display
• 4 Roll wire drive system
• Stepless adjustment control
• Gas /gasless operation
• 2T / 4T trigger latching
• Excellent arc stability
• Gun/lead hanger
• Suits D200/D300 spools
• Spool gun ready

Specifications

• Primary Input Power: 1 Phase 240V 50-60 HZ +/-15%
• MST Duty Cycle @ 40oC

  MMA/TIG 60% @ 250A
  MMA 60% @ 205A

• Open Circuit Voltage:

  MIG 55.3V
  TIG 58.8V
  MMA 58.9V

• Output Current Range
• MIG: 50-250Amps
• MMA / TIG: 10-250Amps
• I 1Max
• MIG 50.6A
• TIG 39.6A
• MMA 57.1A
• Protection Class: IP21S
• Insulation Class: S
• Wire Diameter Range: 0.8mm to 1.6mm
• Electrode Diameter Range: 2.5mm to 5.0mm
• Thermal Overload: Yes
• Minimum Generator KVA: 12.5
• Dimensions & Weight: 87x90x48cm / 51.2kg

Includes

1. MST 250XT Inverter Welder
2. 3Mt Twist lock Electrode Holder
3. 3Mt 300Amp Earth clamp
4. 2Mt Gas Hose
5. Bossweld Twin Gauge Argon Regulator
6. 4Mt Ergon BZ24 MIG Torch
- Drive Rollers:
0.8 / 0.9mm V Groove Roller (fitted)
0.8 / 0.9mm Knurled spare
- Operator Manual
