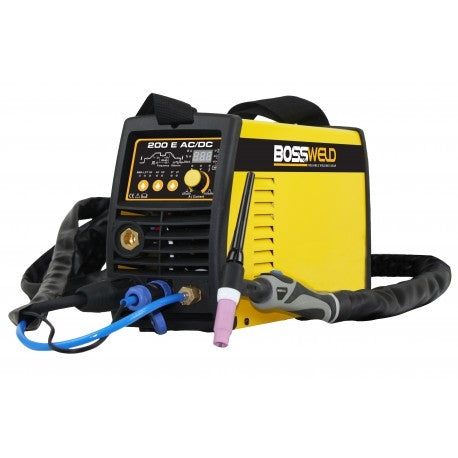

BOSSWELD Digital 200Amp Tig AC/DC Welder 660200

The Bossweld 200E AC/DC TIG welder utilises the latest in IGBT welder technology and is designed with the professional TIG welder in mind. The operator will have the ability to adjust all aspects of the weld cycle. Being an AC/DC, you can TIG weld aluminium, making this welder the ideal choice for any tradesperson or maintenance technician.

BOSSWELD Digital 200Amp Tig AC/DC Features:

• IGBT Inverter Technology
• Digital LCD Display
• Dinse 35/50 Lead connections
• Fan Cooled
• Simple to operate
• 2T/4T Trigger latching function
• Lightweight Industrial
• Post Gas Flow Adjustment
• Down Slope Adjustment 0-10 Sec
• HF Start
• Fully adjustable pulse
• AC balance adjustment
• Fully adjustable sequencer

BOSSWELD Digital 200Amp Tig AC/DC Includes:

• Power Source
• Argon Regulator Bobbin(400211)
• 4mt Agility 26F TIG Torch (95.26F.4.1.SW12A)
• 3mt Electrode & Earth lead set
• 3mt Gas Hose
• Operators Manual

BOSSWELD Digital 200Amp Tig AC/DC Specifications:

• Power Supply: 1 Phase 240V
• 50HZ +/-10% Yes
• 15A Primary Input Plug Fitted Yes
• Duty Cycle @ 40°c TIG 35% @ 200A
• Duty Cycle @ 40°c MMA 50% @ 170A
• Open Circuit Voltage 66.0V
• Output Current Range TIG (AC) 10-200 Amps
• Output Current Range TIG (DC) 10-170 Amps
• Output Current Range MMA 10-170 Amps
• I Max TIG 33.5A
• I Max MMA 36.9A
• I ieff TIG 19.8A
• I ieff MMA 23.3A
• Power factor 0.68
• Protection Class IP23
• Insulation Class H
• Electrode Diameter Range 1.6-4.0mm
• Thermal Overload Protected Yes
• For use with generators Yes
• Power Source Dimensions 48 x 14 x 24cm
• Power Source Weight 10Kg
• Power Source Warranty 2 Years
