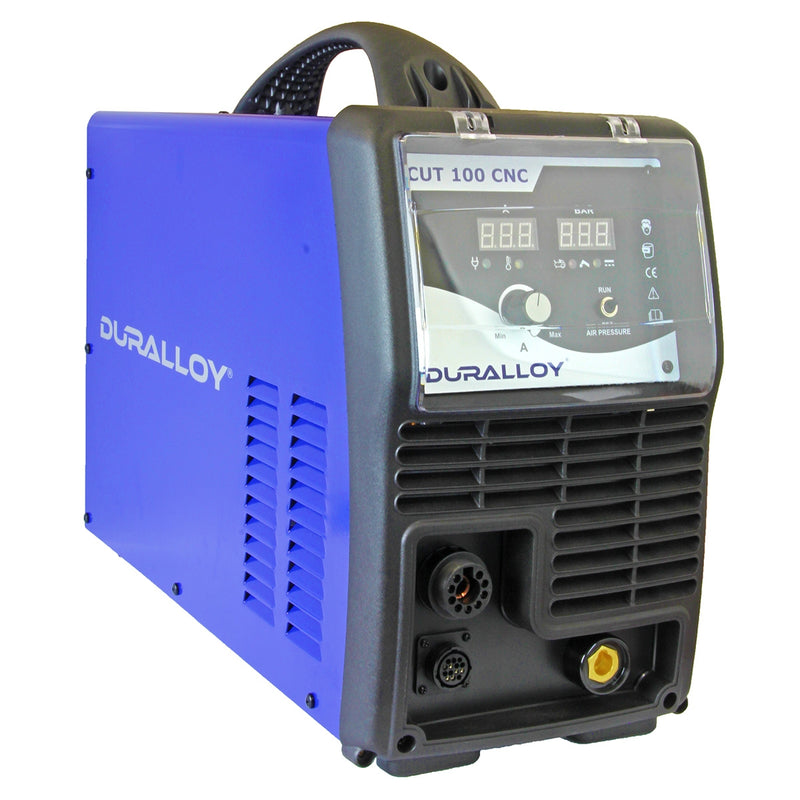

DURALLOY DC Inverter Plasma Cutter-100amp DACUT100P

VEK Tools

$5,499.00 $4,899.00
HEAVY DUTY CYCLE 100 Amps at 100% Duty Cycle  PILOT ARC CONTROLLER Increases cutting capabilities and speed. Extends tip’s life. Ideal for grid cutting. PROTECTIONS Equipped with temperature, voltage and current sensors for greater protection.   FEATURES CNC compatible with optional machine torch Built-in air regulator with water trap APPLICATIONS Boat...
Secure checkout

HEAVY DUTY CYCLE 100 Amps at 100% Duty Cycle

 PILOT ARC CONTROLLER

Increases cutting capabilities and speed. Extends tip’s life. Ideal for grid cutting.

PROTECTIONS

Equipped with temperature, voltage and current sensors for greater protection.



FEATURES

  • CNC compatible with optional machine torch

  • Built-in air regulator with water trap

APPLICATIONS

  • Boat Building

  • General Fabrication

  • Aluminium Fabrication

  • Stainless Fabrication

MATERIALS

  • Mild Steel

  • Aluminium

  • Stainless Steel

PACKAGE INCLUDES

  • Power Source with 415V primary lead and plug

  • 6M 120A Hand Torch

  • 3M Earth

  • Owner’s Manual

SPECIFICATIONS

  • Power Supply: 3 ~ 415V
  • Supply Plug: 32Amp
  • Effective Current 32amp
  • Frequency: 50/60Hz
  • Input Power: 14.5kW
  • Input Current: 28A
  • Duty Cycle: 40oC 10min
  • 100A 100%
  • No Load Voltage: 420V
  • Cutting Current: 20 ~ 100A
  • Severance Cut for Carbon Steel:≤ 60mm
  • Production Cut
• Carbon Steel 45mm
• Stainless Steel 35mm
• Aluminium 36mm
• Copper 20mm
  • Net Weight: 30.5kg
  • Dimensions: 660mm x 240mm x 445mm
  • Insulation Class: H
  • Protection Class: IP23
  • Cooling: Auto Fan

SKU
DACUT100P
Weight
0.0 kg
