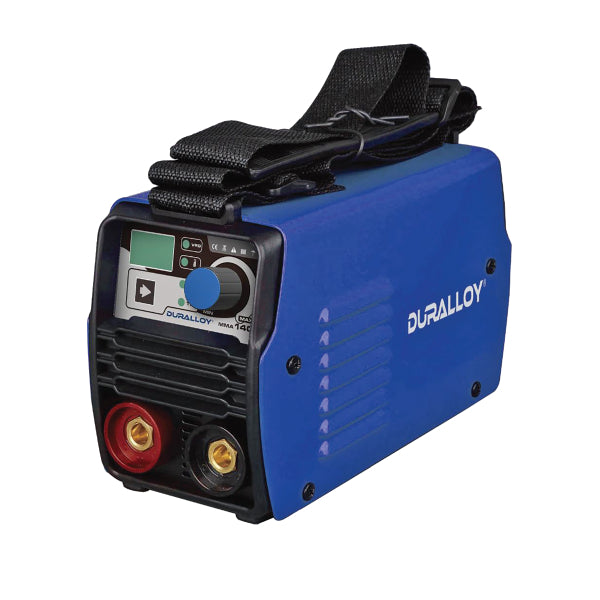

DURALLOY Inverter Mini 140amp MMA Stick Welder-DA140M BDD

All DURALLOY® Welding Machines feature PFC Technology for maximum electrical efficiency and consistent weld output.

• PORTABLE: The machine weighs just 2kg ensuring ease of portability.
• DIGITAL DISPLAY: Variable amperage control with digital meter.
• PROTECTIONS: Equipped with temperature, voltage and current sensors for greater protection.

FEATURES

• Highly portable
• 10 Amp primary plug
• IP21S rating
• Arc Force, Hot Start, Anti Stick & VRD all built-in
• MMA & LIFT TIG functions
• Exceptional smooth Arc characteristics

APPLICATIONS

• Farm & rural maintenance
• Portable on-site repair & maintenance
• Stainless steel fabrication

MATERIALS

• Mild steel
• Stainless steel
• Cast Iron
• Dissimilar metals

SPECIFICTIONS:

• Power Supply: 1-240kW ± 10%
• Supply Plug: 10 Amps
• Frequency: 50/60Hz
• Input Current: 30/10 Amps
• Duty Cycle
• 40oC 10min
• 140A @ 10%
• 58A @ 60%
• 45A @ 100%
• No Load Voltage: 64V
• Welding Current: 10 - 140A
• Efficiency: ≥ 85%
• Net Weight: 2kg
• Dimensions: 225mm x 95mm x 130mm
• Insulation Class:H
• Protection Class: IP21S
• Cooling: Fan
• Electrode Diameter: Ø1.6 - Ø3.2
• Electrode Type: 6013, 7018, etc
• Power Factor: 0.76

PACKAGE INCLUDES

• Power Source
• MMA Earth Lead & Clamp
• MMA Arc Lead & Holder
• Owner’s Manual
