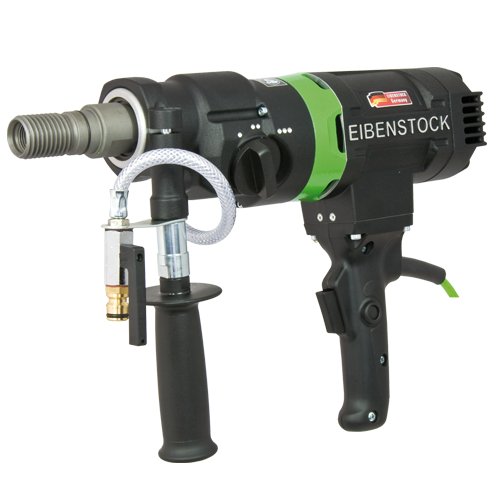

Eibenstock PLD182.1NT Wet Dry Diamond Core Drill

The company was founded in 1919 and from the start specialised in professional products for heavy construction site use. With this strategy, an above average growth has been reached over recent years. More than 90% of all components are produced in our own ;facilities at Eibenstock, Germany.;The employees proudly say that the brand name EIBENSTOCK enjoys a good reputation among both industrial and building ;trade consumers. The basis for this is formed through the ;connection of a long tradition with current development results, a well educated and skilled staff, latest manufacturing technology, an extensive quality assurance system and a creative development team under a dynamic management. They are a leader of continuously developed innovative products exported to more than 50 countries.

Features:

• Powerful 2300 watt motor. Lightweight & easy to use
• 3 speed oil bath gearbox – for optimal lubrication in all working positions
• Electronic – soft start, temperature control and over load protection cut-off
• Ergonomic handle with large switch for control and comfortable drilling
• Heavy duty power cord with Safety Switch
• Mechanical Safety Clutch
• Changing system – fast conversion between wet and dry applications
• Integrated levels on machine

Technical Data:

• Power input: 2300 watt
• Rated Speed: 0-520 / 20-1250 / 0-2700 rpm
• No-load Speed: 950 / 220 / 4400 rpm
• Spindle connection: UNF ½” Female & 1¼” UNC Male
• Collar diameter: 60mm
• Weight: 7.5kg

Drilling diameters:

Concrete (wet)

1st. Gear: 82-182 mm (with drill rig)

2nd. Gear: 42-82 mm

3rd. Gear: 12-42 mm
