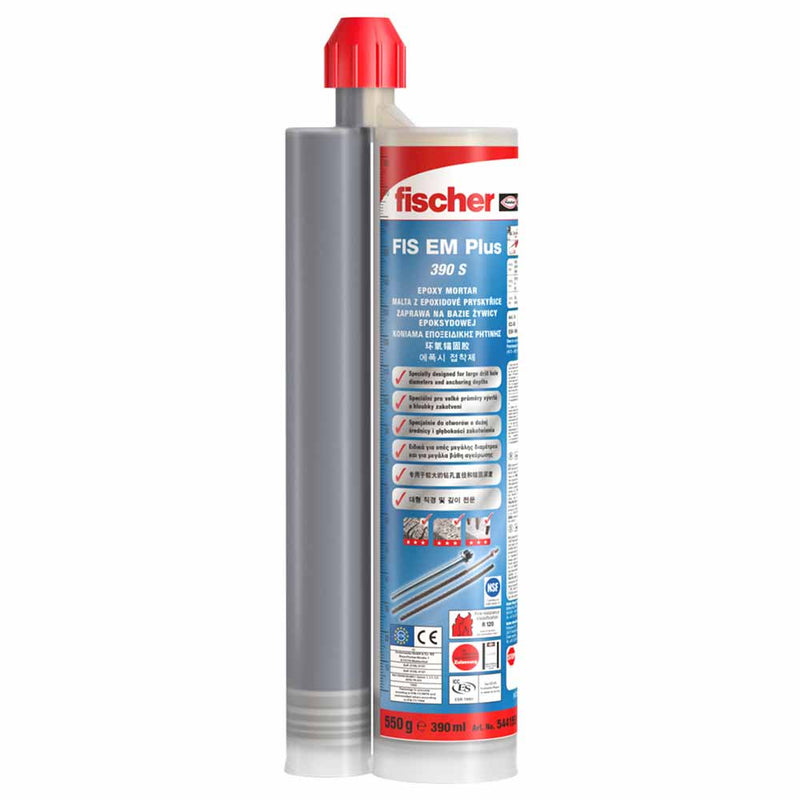

FISCHER FIS EM Plus Epoxy Injection System-390ml -JTD

FIS EM PLUS – Epoxy Mortar
The powerful injection mortar for rebar connections and cracked concrete.

The injection system, comprising the epoxy resin mortar FIS EM Plus combined with a threaded rod, is suitable for pre-positioned and push-through installation. Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer. The mortar is injected bubble-free from the drill hole base. It can be processed at low temperatures down to 0 °C (outside of the assessment even down to -5 °C) as well as seismic applications of performance categories C1, C2.

FUNCTIONING

• The epoxy mortar FIS EM Plus combined with the FIS A threaded rod, is suitable for pre-positioned and push-through installation and with the internal threaded anchor RG M I for pre-positioned installation.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
• The mortar is injected bubble-free from the drill hole base.
• The mortar bonds the entire surface of the anchor with the drill hole wall and seals off the drill hole.
• The anchor rod is set manually by lightly rotating it until it reaches the drill hole base.
• During push-through installation, the annular gap between the anchor rod and attachment is filled with FIS EM Plus.

ADVANTAGES

• The optimised formulation of the epoxy resin mortar FIS EM Plus leads to improved load values in cracked and non-cracked concrete.
• The mortar can be used for rebar connections from diameter 8 to 40 mm.
• With threaded rod FIS A, the loads to be applied can be designed variably by selecting the anchorage depth.
• Temporary and detachable fixing points are possible with the internal threaded anchor RG M I.
• For practical use on the building site, FIS EM Plus can be processed at low temperatures down to 0 °C (outside of the assessment even down to -5 °C).
• The mortar is approved for diamond-drilled and water-filled drill holes as well as seismic applications of performance categories C1, C2 and thus offers safety under extreme conditions.

APPLICATIONS

• Post-installed rebar connections
• Jointers for concrete layers
• Rim beam anchorings
• Seismic applications
• Anchorings in diamond-drilled drill holes
• Heavy steel constructions
• Silo installations
• Tall shelving
• Sound barriers
• Temporary or removable fixings (with internal threaded anchor RG M I).

APPROVED FOR ANCHORINGS IN:

• Concrete C20/25 to C50/60, cracked and non-cracked.

Also suitable for:

• Natural stone with dense structure.

Specs In Picture Section
