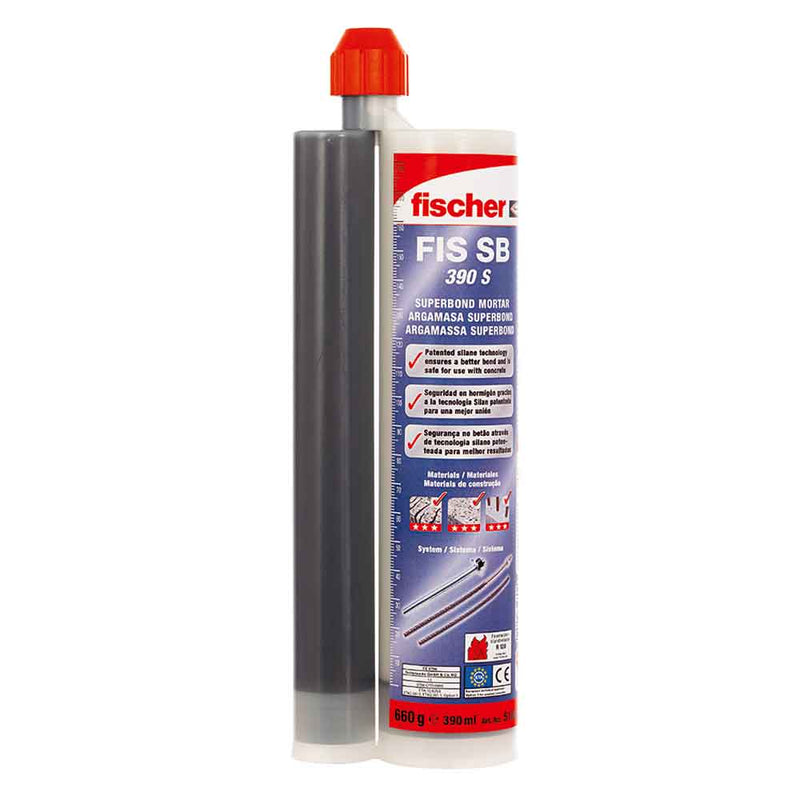

FISCHER FIS SB Vinylester Hybrid Injection System-390ml -JTD

FIS SB 390 S – Superbond Mortar
The concrete all – rounder.

Thanks to its high bond strength, Superbond mortar FIS SB achieves a very high load level for safe use in cracked and non-cracked concrete. The Superbond mortar can even be used at extremely high temperatures of up to +150 °C. This opens up new application fields, where no chemical anchor could be used previously. The Superbond mortar FIS SB is approved for seismic applications, which ensures safety even under extreme conditions.

FUNCTIONING

• The injection system, which comprises the Superbond mortar FIS SB, an injection mortar based on a vinyl ester hybrid with hydro silicon technology, is suitable (in conjunction with the correct threaded rod) for pre-positioned and push-through installation.
• Resin and hardener are stored in two separate chambers and are not mixed and activated until extrusion through the injection capsule in the static mixer.
• The mortar is injected bubble-free from the drill hole base.
• The mortar bonds the entire surface of the anchor rod with the drill hole wall and seals off the drill hole.
• The anchor rod is set manually by lightly rotating it until it reaches the drill hole base.
• During push-through installation, the annular gap between the anchor rod and attachment is fi filled with Super-bond mortar FIS SB

ADVANTAGES

• Thanks to its high bond strength, Superbond mortar FIS SB achieves a very high load level for safe use in cracked and non-cracked concrete.
• Variable anchorage depths from 4x to 20x anchor rod diameter allows for ideal adaptation to the load being applied and ensures an optimized installation time and use of materials.
• The Superbond mortar can even be used at extremely high temperatures of up to +150 °C. This opens up new application fields, where no chemical anchor could be used previously.
• The Superbond mortar FIS SB is approved for seismic applications, which ensures safety even under extreme conditions.

APPLICATIONS

• Heavy steel constructions
• Silo installations
• Tall shelving
• Sound barriers
• Guard rails
• Staircases
• Masts
• Machines

APPROVED FOR ANCHORINGS IN:

• Concrete C20/25 to C50/60, cracked and non-cracked

Also suitable for:

• Concrete C12/15
• Natural stone with dense structure
