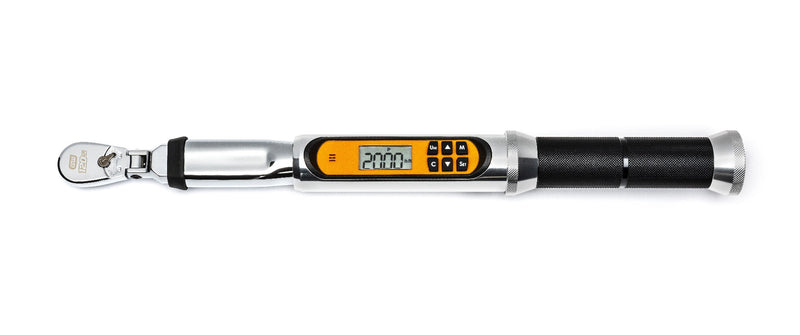

1/4" 120XP- Flex Head Electronic Torque Wrench with Angle
- 120XP- head provides a 3° ratcheting arc to turn fasteners in narrow spaces
- Torque accuracy of +/-2% CW and +/-3% CCW between 20% and 100% of wrench capability Angle settings offer +/-1% of reading of angle accuracy
- Low profile tube, 15° flex teardrop head, and flush mounted on/off switch allow for better access in tight confines
- Digitally tracks torque and angle measurements. Vibrating handle, buzzer, and LCD screen alert when target torque is reached
- 3 function modes feature peak torque, angle, and peak angle for additional versatility
- 5 torque measurement units provide a readout in ft-lb, in-lb, Nm, Kg-m, and Kg-cm
- 10 available preset torque settings allow you to quickly access frequently repeated applications
- Knurled aluminum handle lets you grip comfortably, while clearly marked midpoint promotes additional accuracy
- Meets or exceeds ASME standards and specifications
- 1 year limited warranty; calibration accuracy warrantied for 90 days
Specifications:
| Barcode | 099575851940 |
|---|---|
| Foreign Trade Code | 82041100 |
| Packaging | Boxed |
| Set | No |
| Overall Length | 15.45 in |
| Size | 5° - 999° Angle |
| Finish | Full Polish Chrome |
| ASME Specification | B107.10 B107.12 B107.28 B107.300 |
| Drive Type | Square |
| Drive Tang Size | 1/4 in |
| Knurled | Yes |
| Tooth Count | 120 |
| Head Thickness | 0.4 in |
| Head Width | 1.01 in |
| Alt Scale Increments | 0.1 Nm |
| Primary Scale Increments | 0.1 ft/lb |
| Max Torque (Alt Scale) | 27 Nm |
| Min Torque (Alt Scale) | 2.7 Nm |
| Max Torque (Primary Scale) | 20 ft/lb |
| Min Torque (Primary Scale) | 2 ft/lb |
| Head Thickness Less Tang | 0.25 in |
| Head Length | 1.5 in |
| Torque Accuracy (20-100% of Full Range) | +/-2% Clockwise |
| Material | Alloy Steel |
| Country of Origin | No |
| Catalog Number | 85194 |
| UNSPSC_V7.0901 | No |
| Weight (Catalog) | 1.5 lb |
| Flexible | No |
| Certified | No |
