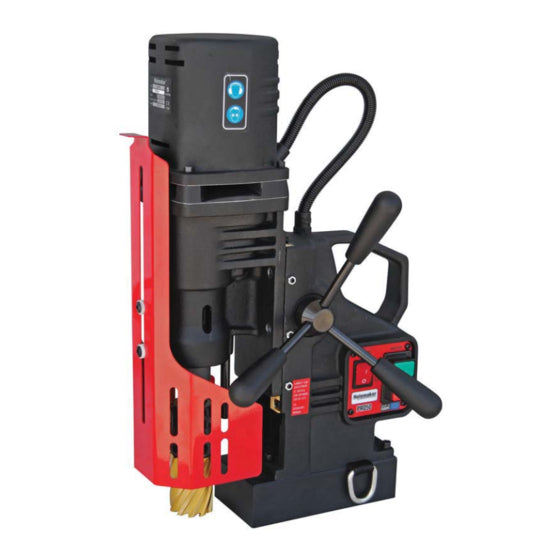

The ability to use Holemaker Cutters, No. 2 Morse Taper Shank Drills & Reamers, as well as a drill chuck makes this a very multi-purpose machine. Satisfying most requirements with a capacity of 52mm Diameter & 75mm Depth of cut when using Holemaker cutters, and 23mm diameter using taper shank drills or reamers. An industrial 2 speed gearbox and 1260w motor provide a strong hardworking machine. Other standard features include cast iron construction, gravity feed coolant system & left or right hand feed handle operation. The unique semi-automatic gib adjustment system enables simple, fast and always correct fine tuning without any expert knowledge or experience.
Suitable for steel fabrication, engineering workshops & maintenance facilities where a heavy duty versatile machine is highly beneficial.
Supplied complete with arbor for use with Holemaker Cutters up to 52mm depth of cut. Optional arbor to take Holemaker Cutters up to 75mm depth of cut is available.
| SPECIFICATIONS | |
|---|---|
| Capacity (Diameter - max) | 52mm |
| Capacity (Depth of Cut - max) | 52mm |
| Capacity ( Twist Drills) Â | #2 Morse Taper 23mm |
| Motor Input Power | 1300 Watt |
| Motor Output Power | 1260 Watt |
| Gearbox  | 2 Speed 200/400 rpm |
| Magnet Dead Lift | 12000nm |
| Weight | 16.5kg |
