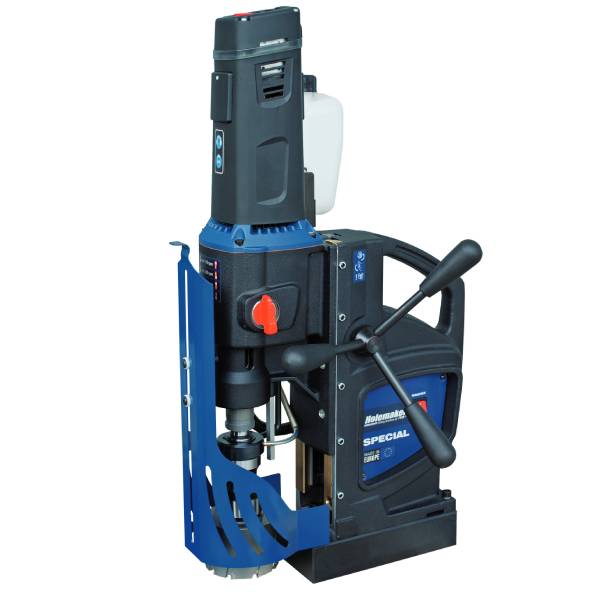

HOLEMAKER SPECIAL 110 MAGNETIC BASE DRILL, 240V, 3MT, CAP: 120MM DIA X 110MM DEPTH - HMSPECIAL110

#3 MORSE TAPER, VERSATILE DRILLING & TAPPING MACHINE

The Holemaker Special 110 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machineâ„¢s forward & reverse work modes with variable speed adjustment allows thread cutting up to M30 of through holes and blind holes.

Features

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic Variable Speed Control
• Electronic clutch
• Overload and Overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a metal carry case with cutter guard & safety strap

• Capacity ( Diameter ): 120mm
• Capacity ( Depth ) : 110mm
• Twist drill capacity: 32mm
• Tap capacity: M30
• #3 Morse Taper spindle
• 2150 Watt 240V motor
• 4 Speed variable gearbox (75-110 / 135-200 / 220-320 / 390-570rpm)
• Lightweight, only 25kg
• 18000Nm Magnetic dead lift on 25mm steel plate
• 225mm Stroke
• Height 597mm min / 822mm max

Supplied with arbor for use with 3/4� shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4� shank cutters up to 120mm diameter and 110mm depth.
