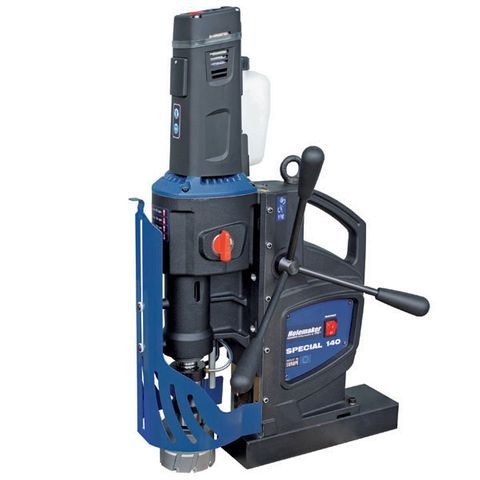

HOLEMAKER SPECIAL 140 MAGNETIC BASE DRILL, 240V, 4MT, CAP: 150M DIA X 110MM DEPTH - HMSPECIAL140

#4 MORSE TAPER HEAVY DUTY DRILLING & TAPPING MACHINE

The Holemaker Special 140 is a highly versatile European made machine for professional drilling and tapping applications, featuring the latest innovations in drilling machine technology. The machineâ„¢s forward & reverse work modes with variable speed adjustment allows thread cutting up to M42 of through holes and M33 blind holes.

Features

• New generation Italian made motor
• Intelligent speed control system maintains stable speed regardless of load changes
• Electronic Variable Speed Control
• Electronic clutch
• Overload and Overheat protection
• Tilt sensor stops the motor in cases of machines break away
• 360-degree visual monitoring system indicates current condition of the drill and gives safety and diagnostic information e.g. worn brushes
• Intuitive control panel at top of the drill
• Very light weight
• Supplied in a metal carry case with cutter guard & safety strap

• Capacity ( Diameter ): 150mm
• Capacity ( Depth ) : 110mm
• Twist drill capacity: 47mm
• Tap capacity: M42
• #4 Morse Taper spindle
• 2150 Watt 240V motor
• 4 Speed variable gearbox (55-85 / 100-150 / 200-300 / 350-520rpm)
• Lightweight, only 31kg
• 25000Nm Magnetic dead lift on 25mm steel plate
• 260mm Stroke
• Height 634mm min / 894mm max

Supplied with arbor for use with 3/4� shank Holemaker cutters up to 75mm diameter and 75mm depth of cut. Optional arbor for 1-1/4� shank cutters up to 150mm diameter and 110mm depth.
