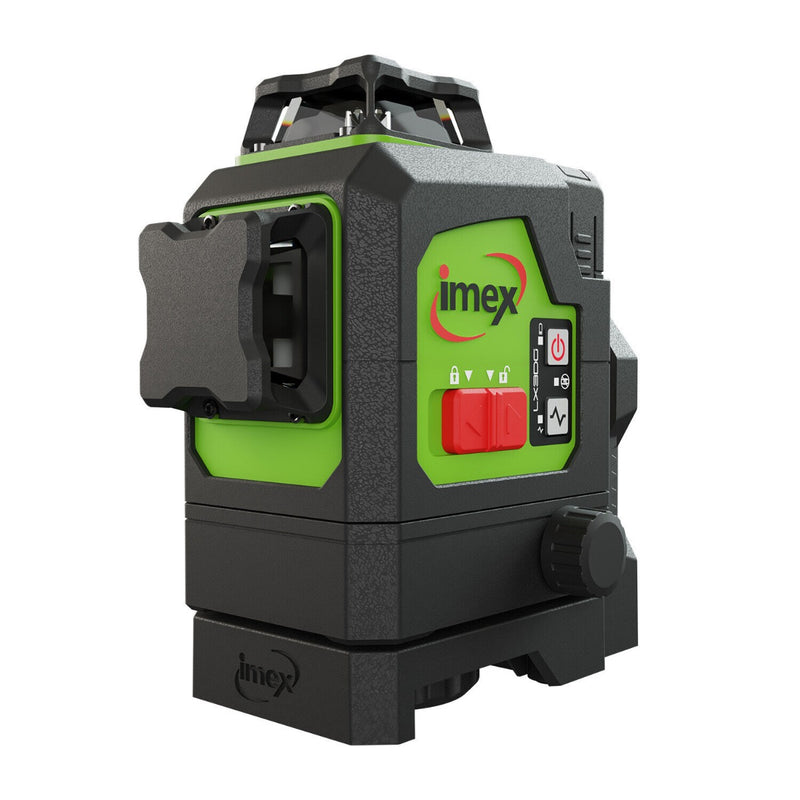

IMEX Green Beam Multi Line 3 Plane Plumb Cross Line Laser Level Kit LX3DG -Series 2

VEK TOOLS

$879.00
  The Imex LX3DG is a line laser with everything. Now with PreciseALIGN fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II...
Secure checkout
Free shipping over $50



The Imex LX3DG is a line laser with everything. Now with PreciseALIGN fine adjustment to get that perfect 90-degree set out. With three, 360 degree lines and an offset to ensure uninterrupted laser lines, this versatile green beam laser is the ultimate for all interior alignment tasks. Series II features an all-new quick release lithium battery platform, compatible across all Series II LX models, plus new rubberised housing for a comfortable, non-slip grip.

Features:
  • PreciseAlign fine adjustment to pivot laser - Up to 10° Fine Adjustment for precise 90° set out on LX3DG
  • 5.2Ah lithium battery pack - swaps to all LX series II models.
  • Rugged housing with non-slip rubberised moulding
  • 360 degree horizontal and vertical laser lines
  • Ultra visible green beam technology
  • Pulse mode to work with laser detector
  • 360 degree turntable and magnetic bracket
  • Self levelling

Specifications

  • Self levelling range 4° ± 1
  • Out of level indication laser blinks on/off
  • Laser accuracy ±3 mm @10 m
  • Laser class Class 2
  • Laser wavelength 520 ± 10 nm
  • Laser distance 20 m light-dependent
  • Laser fan angle -lines H 360° V 360°
  • Power source 5.2 Ah lithium-ion
  • Run time - all beams and dots 6 hrs
  • Control switch 1 button, pendulum lock
  • IP Rating IP54
  • Operating temperature -10° to +50°C
  • Storage temperature -20° to +70° C

INCLUDES: lithium battery, USB-C, alkaline batteries, magnetic bracket operating manual, plastic carry case

SKU
LX3DG
Weight
263.0 kg
