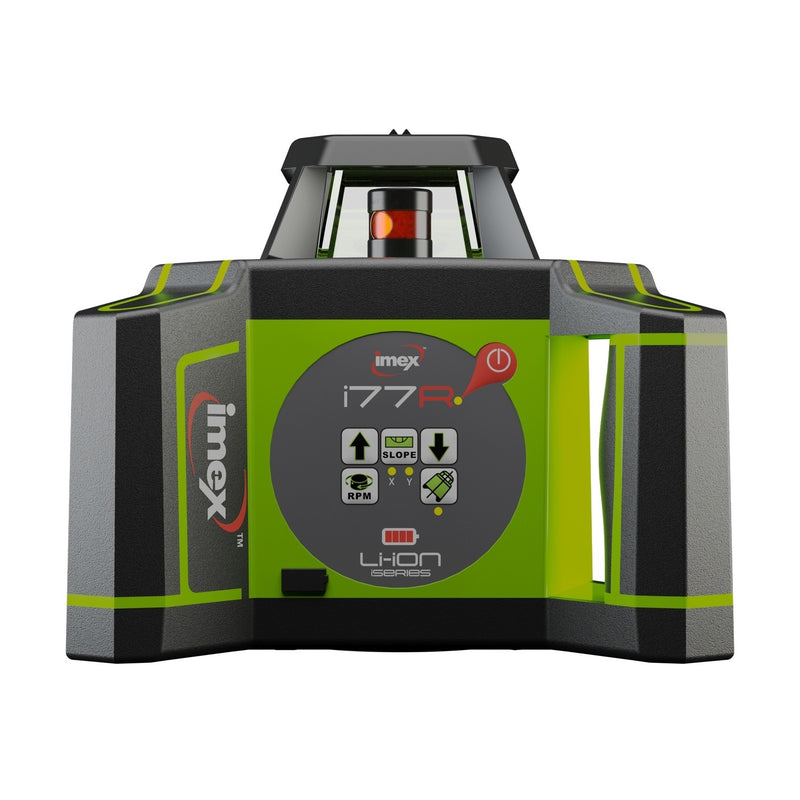

IMEX i77R Red Beam Rotary Laser Level Kit with LRX10 Receiver

The IMEX i77R red-beam rotary laser level kit provides horizontal construction levelling and single-axis manual grade adjustment. The included LRX10 double-sided digital receiver offers selectable millimetre readouts for site layout, concrete slab falls and pipe work.

Specifications

• 600m diameter working range; ±1.5mm accuracy at 30m
• Horizontal self-levelling; single manual grade up to 5° (approximately 8.8%)
• Variable rotation speeds of 0, 60, 120, 300 and 600rpm
• 635nm Class II red laser; IP66 protection
• LRX10 digital receiver with 90mm reception area and five sensitivity settings, including 0.5mm ultrafine
• 9Ah 3.7V lithium-ion battery with approximately 40 hours runtime and USB-C charging
• iCR7 remote control

Kit contents

i77R laser, LRX10 receiver, remote, USB cable, 9Ah lithium battery, car charger, target plate and hard carry case. Tripod and staff are not listed in this standard kit.
