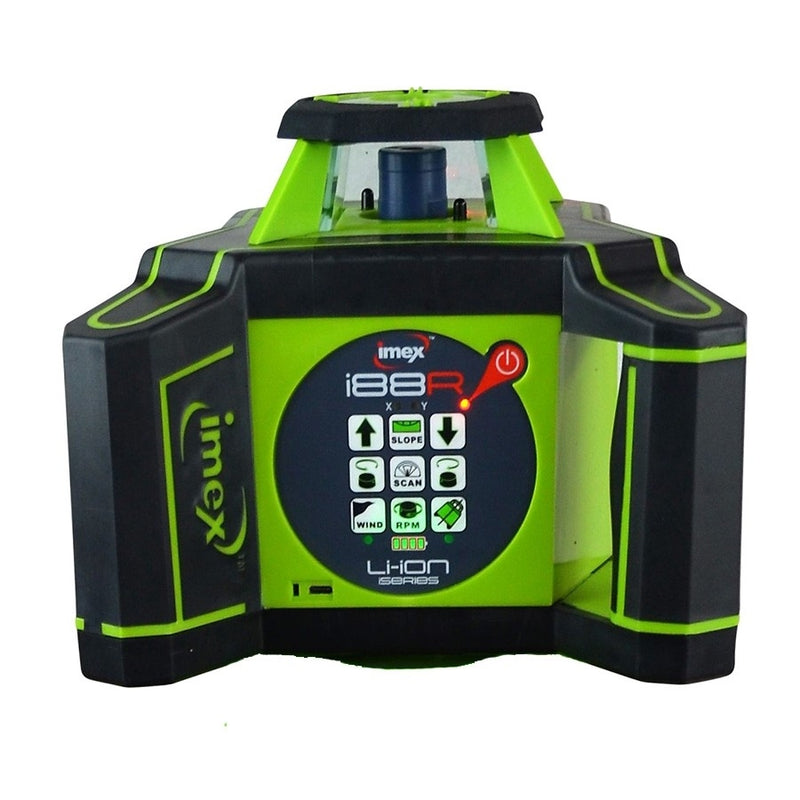

IMEX i88R Red Beam Rotary Laser Level Kit with LRX10 Receiver

The IMEX i88R red-beam rotary construction laser level kit supports horizontal and vertical self-levelling, dual-axis manual slope adjustment and scan mode. It includes the LRX10 double-sided digital millimetre receiver for accurate building, concrete and site layout.

Specifications

• 600m diameter working range and ±1.5mm stated accuracy at 30m
• Horizontal and vertical operating modes with dual manual grade to 5° (approximately 8.8%)
• Variable speeds: 0, 60, 120, 300 and 600rpm, plus scan settings
• 635nm Class II red-beam laser and IP66-rated housing
• LRX10 receiver with 90mm reception area and five selectable millimetre settings
• 9Ah 3.7V lithium-ion battery, USB-C charging and included 12V car charger
• iCR8 remote control

Kit contents

i88R laser, LRX10 receiver, remote, USB cable, 9Ah lithium battery, car charger, target plate and hard carry case. The original VEK description quotes approximately 40 hours runtime; supplier specifications vary by operating conditions, so confirm runtime for this exact kit.
