LEICA LINO L6G-1 Li Ion 3D 3x360° Green Beam Multi Line Laser Combo Kit With Rugged Case

Leica Lino L6G 3x360° Green Beam Multi Line Laser projects three, ultra-strong 360° thin, crisp and clearly visible green laser lines ideal for bright environments and large work environments as green laser lines are up to four times more visible to the human eye if compared to red lasers.

Features:

• Horizontal and two vertical 360° green laser lines
• Best visibility due to green Ultra-power laser diodes
• Self-leveling over wide range
• Fixed plumb point due to integrated base
• Adjustable strength of laser lines
• Operating range of up to 35 metres
• Li-Ion power for up to 11 h
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters versatile usage

Specifications:

• Beam horizontal: 360°
• Beam vertical: 2 x 360°
• Intersection points: up, down, right, left, front, back (90° / 180°)
• Range / diameter*: 35 m / 70 m (115 ft / 230 ft)
• Range / diameter* with Leica RGR 200 receiver: 70 m / 140 m (230 ft / 460 ft)
• Levelling accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Horizontal- and Vertical line accuracy: ± 0.3 mm/m (± 0.004 in/ft)
• Intersection point accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Self-levelling range: ± 4°
• Self-levelling time: < 3 sec
• Fine adjustment: ± 10° around vertical intersection point
• Out-of-level warning: yes – blink lines every 5 s
• Levelling: pendulum (lockable)
• Laser: 525 nm / class 2 (acc. to IEC 60825-1)
• Protection class: IP54 (dust and splash water)
• Battery type: Lino Li-Ion battery pack 5200mAh / 18.7Wh or 3xAA Alkaline
• Laser line intensity (selectable): 100 %, 75 %, 50 %
• Operating time with Li-Ion: up to 11 h (3 beam, 50 % power)
• Operating time with Alkaline: up to 8 h (3 beam, 50 % power)
• Operation temperature: -10 to +50° C (14 to 122° F)
• Storage temperature: -25 to +70° C (-13 to +158° F)
• Laser line width @ 5 m distance (16.4 ft): < 2 mm (< 0.08 in)
• Tripod thread: 1/4 in (5/8 in with adapter)
• Pulse power for receiver: yes
• Dimensions: 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
• Weight: 781 g (1.71 lbs)

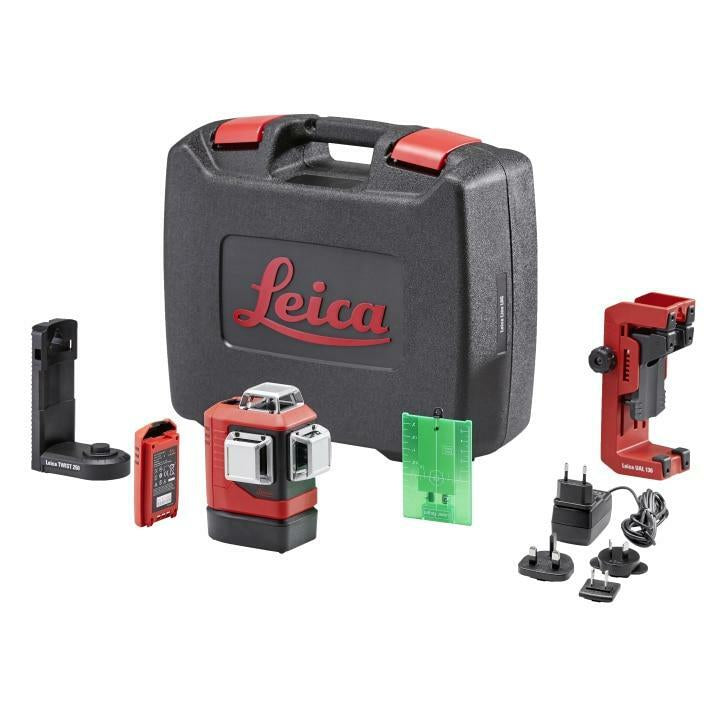

Includes:

• 1 x Twist 250 magnetic adapter
• 1 x UAL 130 wall mount adapter
• 1 x Li-Ion battery pack
• 1 x Charger for Li-Ion battery pack
• 1 x  Battery tray for Alkaline
• 1 x Target plate
• 1 x Quick start guide
• 1 x Calibration Certificate Blue
• 1 x Rugged case
