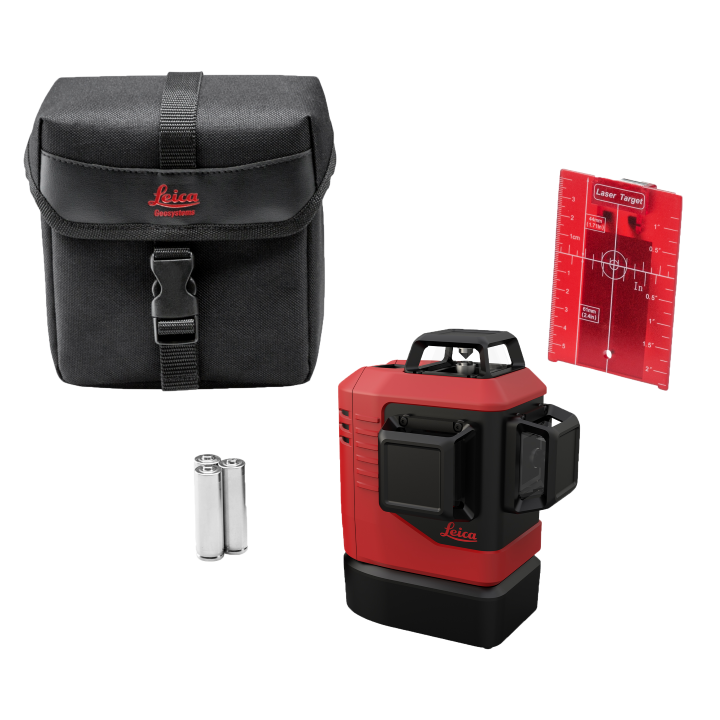

LEICA LINO L6RS-1 Alkaline 3D 3x360° Red Beam Multi Line Laser Combo Kit With Soft Case

The Leica Lino L6R is a self-leveling red multi line laser with 360° laser line projection for multi-directional alignment—perfect for indoor applications. The laser’s vertical lines are easily adjusted (± 10°) once the plumb point is set.

Features:

• Horizontal and two vertical 360° red laser lines
• High visibility due to red Ultra-power laser diodes
• Self-leveling over wide range
• Fixed plumb point due to integrated base
• Adjustable strength of laser lines
• Operating range of up to 25 metres
• Li-Ion power for up to 36 h operation(This Model Is Alkaline Battery Based Not Li-Ion)
• Uninterrupted working with Triple-Power concept
• Smart magnetic adapters for easy positioning

Specifications:

• Beam horizontal: 360°
• Beam vertical: 2 x 360°
• Intersection points: up, down, right, left, front, back (90° / 180°)
• Range / diameter*: 25 m / 50 m (82 ft / 164 ft)
• Range / diameter* with Leica RGR 200 receiver: 70 m / 140 m (230 ft / 460 ft)
• Levelling accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Horizontal- and Vertical line accuracy: ± 0.3 mm/m (± 0.004 in/ft)
• Intersection point accuracy: ± 0.2 mm/m (± 0.002 in/ft)
• Self-levelling range: ± 4°
• Self-levelling time: < 3 sec
• Fine adjustment: ± 10° around vertical intersection point
• Out-of-level warning: yes – blink lines every 5 s
• Levelling: pendulum (lockable)
• Laser: 635 nm / class 2 (acc. to IEC 60825-1)
• Protection class: IP54 (dust and splash water)
• Battery type: 3xAA Alkaline
• Laser line intensity (selectable): 100 %, 75 %, 50 %
• Operating time with Alkaline: up to 25 h (3 beam, 50 % power)
• Operation temperature: -10 to +50° C (14 to 122° F)
• Storage temperature: -25 to +70° C (-13 to +158° F)
• Laser line width @ 5 m distance (16.4 ft): < 2 mm (< 0.08 in)
• Tripod thread: 1/4 in (5/8 in with adapter)
• Pulse power for receiver: yes
• Dimensions: 124 x 107 x 154 mm (4.88 x 4.21 x 6.06 in)
• Weight: 781 g (1.71 lbs)

Includes:

• Leica Lino L6R
• Quick start guide
• Soft bag
• 3 AA batteries
• Laser target
• Safety instructions
• Calibration certificate
• Warranty card
