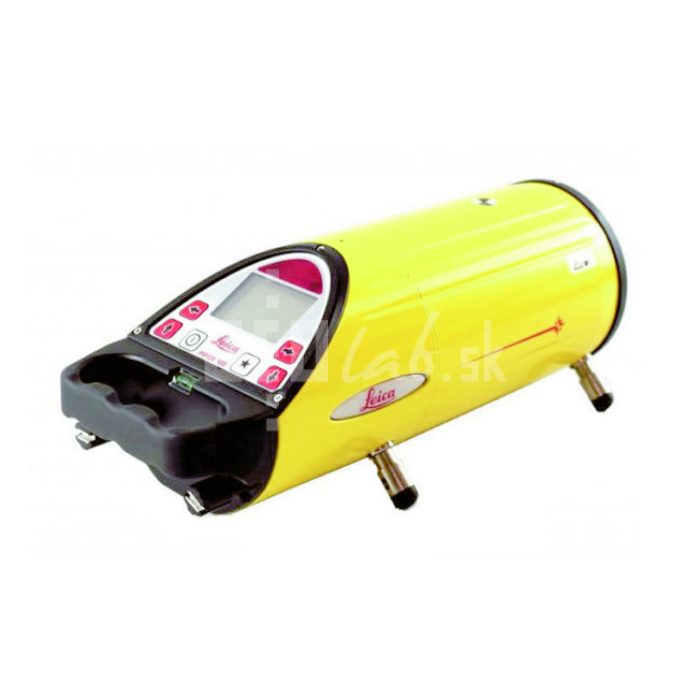

LEICA Pipe Green Laser Kit With Alignmaster Auto Scan- Piper 200

The Leica Piper series of pipe lasers are perfect for: storm and sanitary sewer construction, gravity flow pipe line and anywhere grade and line are required with a single beam. Choose from the Piper 100 or the Piper 200 with Alignmaster.

Solid performance in the pipe, over the top or in the manhole. The Leica Piper Series helps you to work with confidence having the perfect instrument for your application and need. Built with a rugged aluminium housing, these pipe lasers perform powerfully even under tough job site conditions.

Includes:

• 1 x PIPER200G Green Beam Pipe Laser
• 1 x Alignmaster
• 1 x Laser Target
• 1 x Battery
• 1 x Infrared Remote

Features:

• Green Beam - Offers four times better visibility of the laser providing you higher levelling accuracy. This allows you to work at longer distances from the instrument position even in bright conditions. Often used in water and sewage the green series improves the usability also in those use cases
• Compact & Rugged - Leica Pipe Lasers are the smallest pipe lasers in the market fitting inside a 100 mm/4 in pipe. There is no compromise, with the Leica Piper you have a small pipe laser providing the highest performance standards.
• Trustful Long Range Precision - Leica's extensive laser experience and leading position when it comes to laser technology gives you the trust in long-range accuracy within every environmental condition.

Specifications:

• Laser Colour: Green
• Wavelength: 520nm
• Laser Class: 3R
• Max. Average Radiant Power: 4.8mW
• Working Range: < 200m
• Grade Range: -10% to +25%
• Levelling Range: -15% to +30%
• Line Movement: 6m at 30m
• Battery: Li-ion
• Operating Time: Up to 40hr
• Charging Time: 4hr
• Operating Temperature: -20ºC to +50ºC
• Housing: Cast Aluminium
• Protection Class: IPx8
• Wireless Remote Distance:
  • Front: 150m
  • Back: 10m
• Self-Levelling Accuracy: +/- 1.5mm at 30m
• Auto Targeting: Yes
• Dimensions (L x W x H): 267mm x 96mm x 96mm
• Weight: 2kg

Technical Specification
