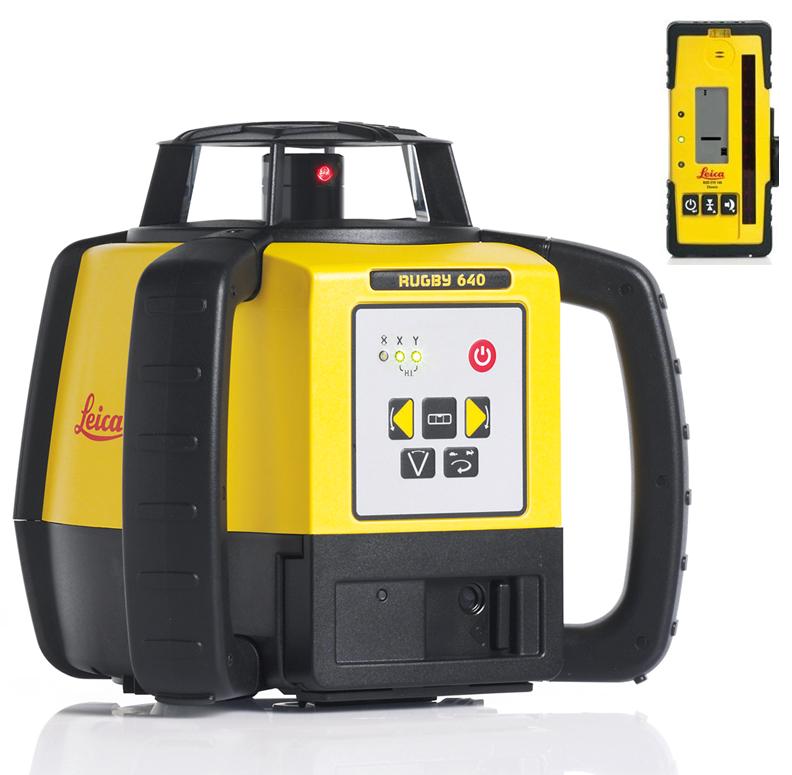

LEICA Rugby 640 Horisontal/Vertical Grade Construction Laser Kit LG6005987

Leica Rugby 640 rotating laser - Versatility inside and outside
• Fit for any interior and exterior levelling, aligning and squaring application
• Scan 90 – make layout easier by quickly moving the beam to the left or right side
• Plumb Down – automatic and accurate plum down direction for alignment over a reference point
• Sleep Mode – save battery and put the Leica Rugby into sleep mode without disturbing your set up



SPECIFICATIONS
• Dimensions 212 × 239 × 192 mm
• Weight 2.56 kg / 5.6 lbs
• Functionality : Self-levelling horizontal, vertical, 90° and manual slope in dual axis
• Multipurpose / H.V.
• Laser Class 2
• Laser type 635 nm (visible)
• Plumb up
• Measured at 20°C (horizontal / vertical)  ± 1.5 mm at 30 m (1/16" at 100 ft)
• Rotation – RPS  0, 2, 5, 10
• Scanning – degrees 10, 45, 90
• Scan90
• Beam down
• Sleep mode
• Range (diameter) – RE160 600 m (2.000 ft)
• RF remote control (diameter) 200 m (650 ft)
• Working temperature range –20 to +50 °C
• Storage temperature range –40 to +70 °C
• Seal (both excluding and including battery pack) IP67


Leica Rod Eye 140 Receiver

The Leica Rod Eye 140 Classic provides a superb entry level laser detector eye for all types of laser levels. The extended range of 1,350m (4,430ft) offers a large working area with up to 1mm accuracy.

Large Detection Window: The large detection window of 120mm provides three detection accuracies, medium, fine and super fine.

Anti-strobe Protection: Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.

Beam Finding: Passing the receiver through the laser beam will cause the receiver to beep twice quickly.

Out of Beam Display: If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.

Laser Low Battery: A small laser icon on the receiver display alerts the user when the batteries are getting low.

LCD Indication: Two, large graphic displays on the front and back of the receiver.

LED Indication: Three bright LED’s can be used as a ready reference for the receiver position.

Menu Function: Additional options are available to set your functional preferences.

Level Vial: Ensures good alignment and improves your reading accuracy.

Exceptional Reception: The extra-long reception window includes the unique technology that provides the accurate digital input.

Audio Indication: Three audio settings. Up to 110 decibels for noisy jobs.

Versatile Rod Bracket: A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.

Protective Overmold: Protects the receiver from drops in tough jobsite conditions.


3 YEAR WARRANTY
