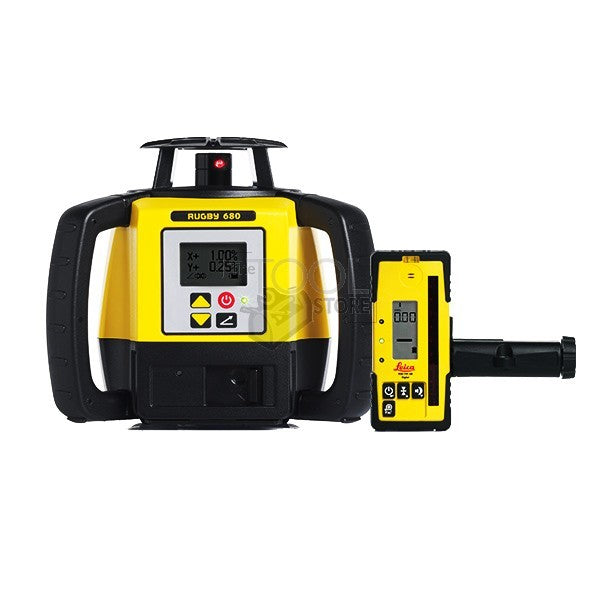

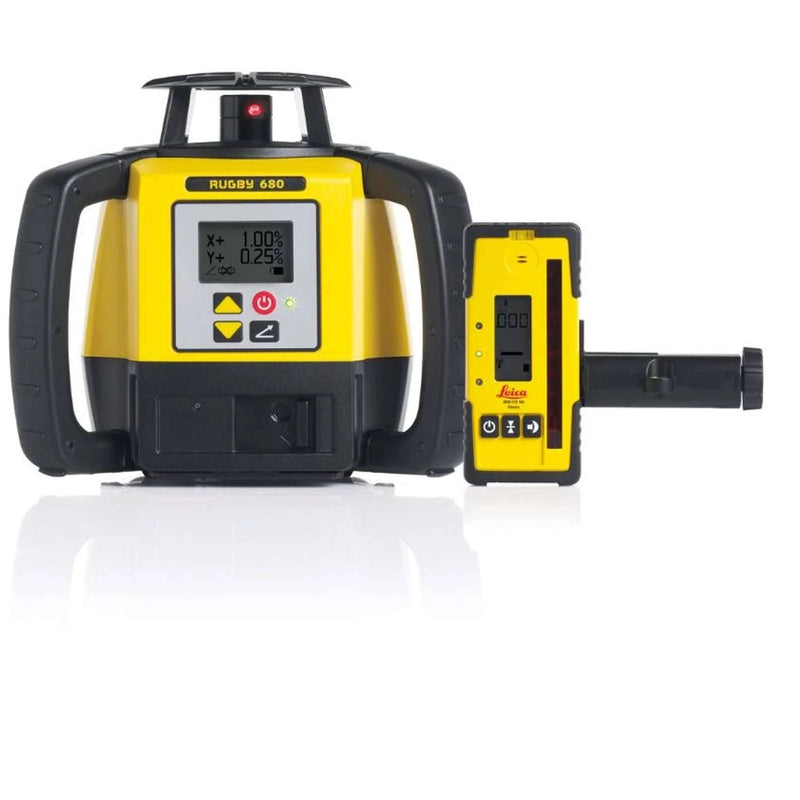

LEICA Rugby 680 Dual Dial In Grade Laser with Digital Receiver LG6006010

The Leica Rugby 680 is a great general construction laser with digital grade capability. The dial-in grade in single or dual axis is easy and fast at the touch of a button.

Features:

• A great general construction laser with digital grade capability
• Dial-in grade in single or dual axis, easy and fast at the touch of a button
• The unique Smart Slope function continuously monitors time and temperature changes to ensure accurate performance over the course of the day

Specifications:

• Functionality: Self-levelling horizontal, dial-in grade in dual axis
• Product Type: Semi-auto grade
• Laser Class: Class 2
• Laser Type: 635nm (visible)
• Measured at 20°C (horizontal / vertical): ±1.5mm at 30m
• Grade Range: ± 8% SG
• Smart Slope: Yes
• Rotation - RPS: 10
• Range (diameter) - Basic: 600m
• Range (diameter) - RE140/160: 800m
• Dimensions (L x W x H): 239mm x 212mm x 192mm
• Weight: 2.56kg

Leica Rod Eye 160 Laser Level Receiver with Bracket

The Leica Rodeye 160 Laser Level Receiver has large number that are clear and easy to read, so you can stay on grade. The 21 step arrow displays provide a graduated reference as you lock on the laser beam.

It has an anti-strobe protection that detectors and ignores the flash from strong strobes on the job, and alerts the user when the batteries are getting low.

Features:

• LCD Indication - Two, large graphic displays on the front and back of the receiver.
• LED Indication -  Three bright LED’s can be used as a ready reference for the receiver position.
• Capture Function - The capture button allows the user to store and display a measurement.
• Menu Function - Additional options are available to set your functional preferences.
• Level Vial - Ensures good alignment and improves your reading accuracy.
• Exceptional Reception
• The extra long reception window includes the unique technology that provides the accurate digital input.
• Audio Indication
• Four audio settings. Up to 110 decibels for noisy jobs.
• Units of Measure
• Digital information is displayed above and below grade in mm, cm, inches, fractions of inches and feet.
• Versatile Rod Bracket
• A rugged rod clamp ensures solid mounting to the grade rod. The circular level vial aids to keep your grade rod plumb.
• Protective Overmold
• Protects the receiver from drops in tough jobsite conditions
• Anti-strobe Protecton
• Detects and ignores the flash from strong strobes on the job so that they will not interfere with the receiver function.
• Beam Finding
• Passing the receiver through the laser beam will cause the receiver to beep twice quickly.
• Out of Beam Display
• If the detector is moved out of the detector range, the arrow display will indicate the direction to move to return to the laser beam.
• Laser Low Battery
• A small laser icon on the receiver display alerts the user when the batteries are getting low

Specifications:

• Working diameter (laser dependent): 1350m
• Detection height: 120 mm
• Numeric readout height: 90 mm
• Detectable spectrum: 600 nm to 800 nm
• Very fine: ± 0.5 mm Fine: ± 1.0 mm
• Medium: ± 2.0 mm  Coarse: ± 3.0 mm
• Very coarse: ± 5.0 mm
• Audio volumes: 105 dBA / 95 dBA / 65dBA / Off
• Automatic shut off: 10 minutes
• Digital readout: Units: mm, cm, in, in (fractions), ft
• Arrow display: 15 channels
• Anti-strobe protection: Yes
• Memory, last beam strike: Yes
• Beam finding (double beep): Yes
• Laser low battery indicator: Yes
• Warranty: Three years
• Environmental: IP67
• Batteries: 50+ hours (2 x 1.5 V "AA" )
• Operating temperature: -20°C to +50°C
• Storage temperature (except batteries): -40°C to +70°C
• Dimensions (L x W x H): 173mm x 76mm x 29mm

Includes:

• Rugby 680
• Rod Eye Receiver
• Protective case
