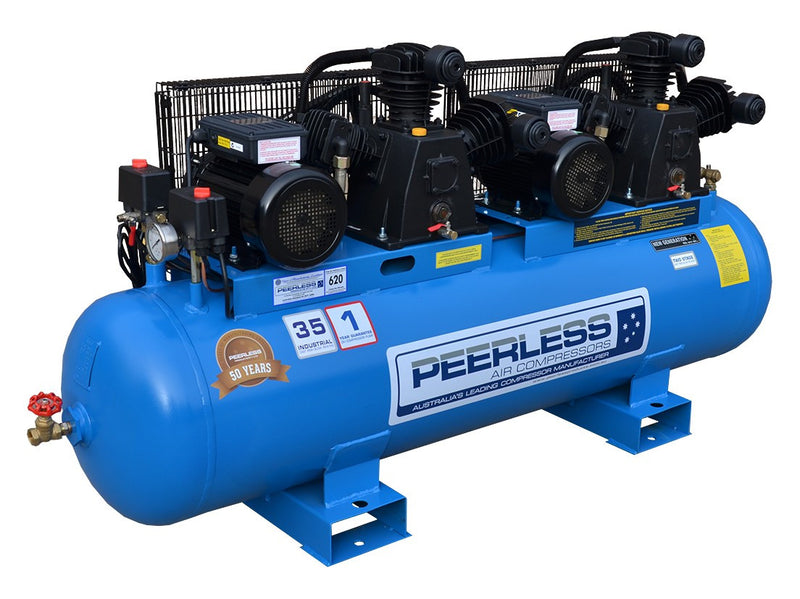

PEERLESS PT35HP Single Phase Air Compressor: Belt Drive, 15Amp, 7HP, 600LPM - for High Pressure

The PT35HP is designed using two 2065T pumps and 3.5 HP motors, coupled on a 190 litre air receiver. The pumps are designed to restart 5PSI apart and require two 15amp power lines (draws 2 x 13 amps) back to your fuse box to operate this machine. It is very important to ensure that this machine is wired in correctly as failure to do so will cause motor failure. Producing a massive 600 litres of free air per minute at 150PSI to a maximum of 175PSI giving you an excellent single phase machine.

Specifications

• Air Delivery: 600 LPM @ 150PSI
• Cylinders: 3
• Max PSI: 175
• Motor: 2 x 3.5HP
• Pump: Peerless 2065T High Pressure
• Pump RPM: 1132
• Power Supply: 2 x 15 AMP
• Amps Draw: 2 x 13
• Tank Size: 200L
• Dimensions L x W x H: 1770MM x 400MM x 880MM
• Weight: 205KG
• Portable / Stationary: Stationary
• Regulator Included? No
• Pump Up Time To 100 PSI: 1.50 MIN
• Pump Warranty: 1 Year
• Motor Warranty: 1 Year
