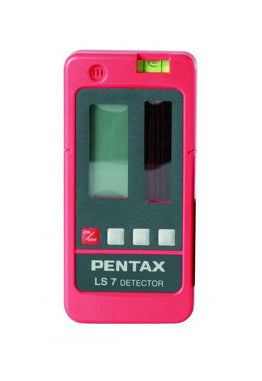

PENTAX Universal Laser Level Receiver with Staff Bracket 519412+519705



When sensing the beam emitted from the instrument the LS7 detector indicates the reference level on the display. An audio signal sounds in three different tones, indicating the required direction of the detector movement. Move the detector down the buzzer makes a quick beeping sound. This is the reference position the buzzer makes a continuous beeping sound. Move the detector up the buzzer makes a slow beeping sound.

With the rear display on the LS7 Detector the reference point can be easily read from both the front and the rear of the receiver

Detection Accuracy

HIGH å± 1 mm LOW å± 2.5 mm
Beam reception indicator Liquid crystal display / buzzer
Sensitivity of vial 30"°ÃƒºÃ‚ª / 2 mm
Power supply voltage DC9V battery(6F22 or 6LF22)
Operation time Approx. 40 hours on alkaline battery (6LF22)
Auto power off Power supply:Approx.10 min.
Illumination Approx. 1 min
Dimensions 68W x 28D x 140H mm
Weight 175 g
2-Sided display
