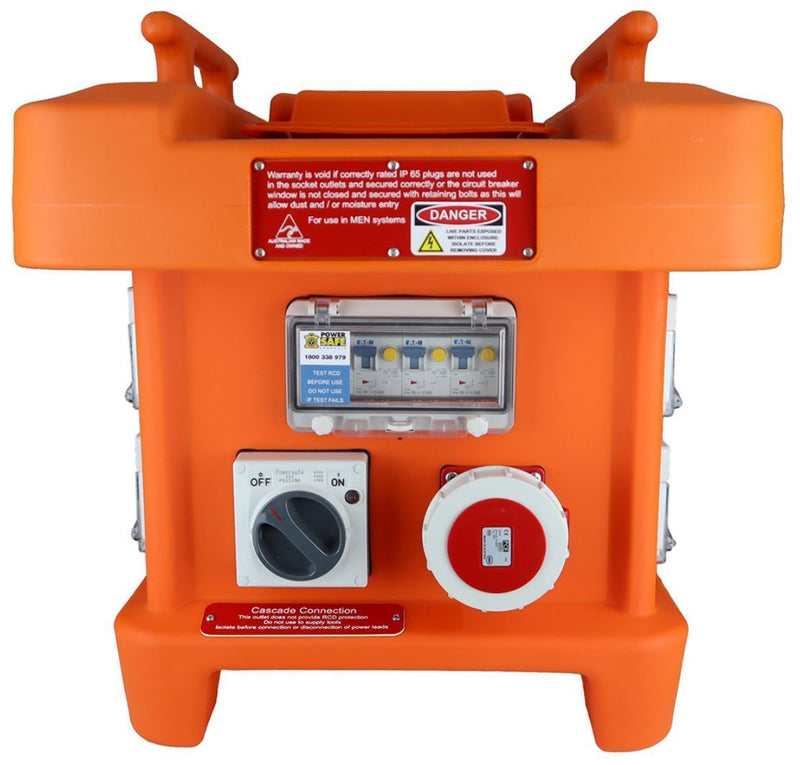

Powersafe MB01-TMS Portable Powerboard 415V - 32A

Powersafe MB01-TMS Portable Powerboard 415V - 32A

Introducing the MB01-TMS (Thermal Management System) The multi-functional power board that is perfect for any small to large site. This board is designed to integrate easily with your site, featuring numerous 3-phase and single-phase outlets. With a plug-and-play design, you won't need an electrician to get started.

Manufactured in Australia by fully qualified electricians, this power board is designed to meet the highest design and compliance standards. It comes fitted with Powersafe Products’ proprietary closed-loop temperature and humidity control system, including OLED display, fan control, test switch, humidity, and anti-freeze control.

Other key features include an IP66 breather drain, which allows one-way moisture flow and two-way airflow to reduce condensation in the board. The windows are also pad-lockable and rated at IP66, providing added security for your equipment. For added convenience, the MB01-TMS comes with optional extras such as a board stand, emergency stop, phase indication lights, 4 Pole MCB, 32A Cascade outlet, and 16A lighting outlet.

Please note that the board is fitted with a CEE Form inlet and may require an adapter lead for compatibility with your power source. In summary, the MB01-TMS is a versatile and reliable power board that offers exceptional performance, convenience, and safety. Order now to experience the benefits of this premium-quality product!

Optional Extras Include

• Phase indication lights | Board Stand | Emergency Stop | 4 Pole MCB | 16A Lighting Outlet | 32A Cascade Outlet

Applications

• Industrial, Generators, Construction Sites, Welding Industry, Mining, Defence.

Features

• Fitted with Powersafe Thermal Management System to allow full 63A Continuous power draw without overheating internal components.
• Cascade outlet allows for convenient daisy chaining of additional boards.
• The entire board, not just the outlets, has undergone testing to achieve an IP65 rating.
• Three-phase outlets can be securely locked off using the rotary switch.
• Plug and play design eliminates the need for hardwiring, offering a hassle-free setup.
• Boards are constructed from high-impact polyethylene that is UV resistant.
• Conductor sizing conforms to AS61439 standards.

Specifications

• Supply Inlet: 32A 415V 5 pin switched CEE Form IP67
• Cascade Outlet: 1 x 32A 415V 5 pin CEE Form rotary switched IP67
• Outlets: 2 x 32A 415V 5 pin switched IP66 & 8 x 15A 240V 3 pin auto switched IP66
• MCB: 1 x 32A 3 pole MCB 10kA
• RCD: 1 x 40A 4 pole RCD 30mA
• RCBO: 4 x 20A 2 pole RCBO 10kA 30mA (for 240V outlets)
• IP Rating: IP65
• Materials: UV resistant high impact V5 polyethylene
• Dimensions: 28 kg 52cm (L) x 53cm (W) x 56cm (H)
