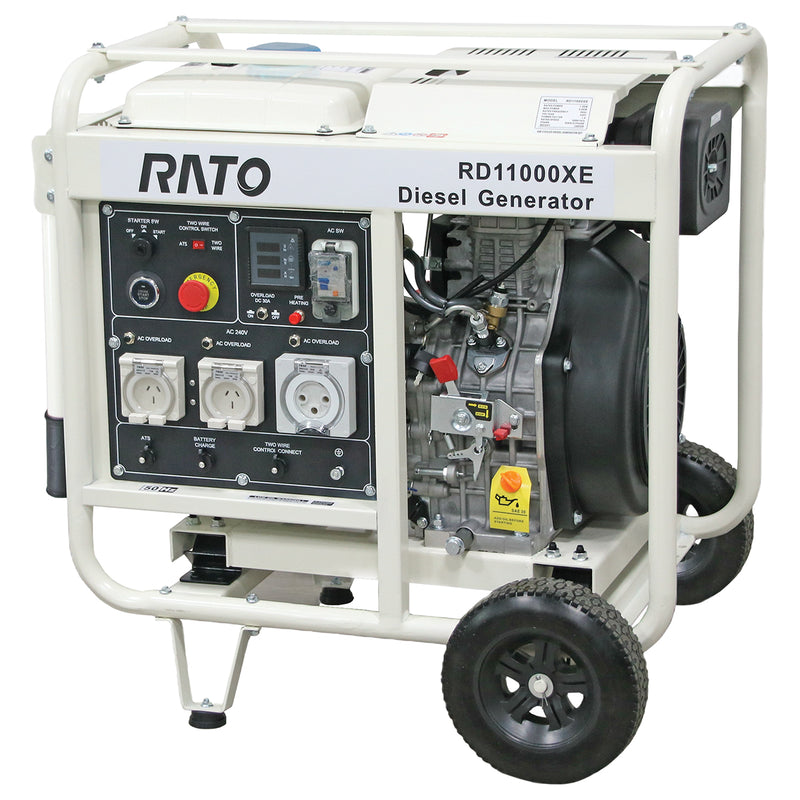

RATO RD11000XE 10kVA Open Frame Diesel Generator

The RATO RD11000XE open-frame diesel generator is designed for construction sites, agricultural applications, mobile operations and standby power. It features a direct-injection, air-cooled four-stroke diesel engine, electric starting, automatic voltage regulation (AVR) and integrated RCD protection.

Features

• 7.5kW rated output for demanding applications
• Electric starting
• AVR voltage regulation
• Single-cylinder four-stroke air-cooled direct-injection diesel engine
• Two IP66 240V 15A outlets and one IP66 240V 32A outlet
• 12V DC output and integrated RCD protection
• Two-wire connection provision for automatic start/stop integration
• Open-frame design

Technical specifications

• Model: RD11000XE
• Rated output: 7.5kW
• Maximum output: manufacturer specification table states 8.5kW
• Voltage: 240V, single phase
• Frequency: 50Hz
• Fuel: diesel
• Fuel tank capacity: 15L
• Continuous runtime: 8 hours at full load; 13 hours at half load
• Dimensions (L × W × H): 830 × 540 × 680mm

Generator suitability and installation requirements depend on the intended load and electrical setup. Consult a qualified electrician for backup-power connections.
