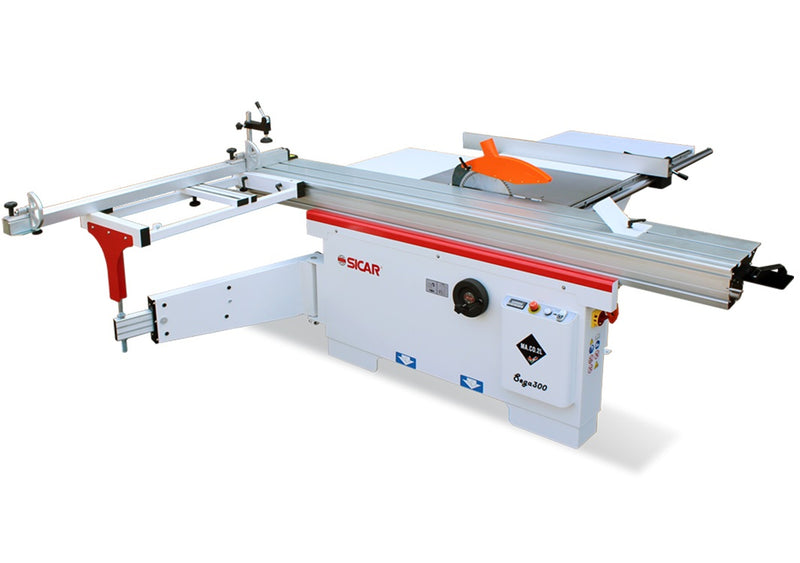

SICAR 300mm (12") 2.6m Sliding Table 4HP Italian Designed Panel Saw 240V SEGA300

The Sega300 sliding table saw/panel saw  machine adopts industrial computer control, which has an advanced but easy-to-operate man-machine interface.

The key components and other electrical appliances or toggle components are all from international brand-name products to ensure accuracy and reliability.

Optional optimization software adds drawing design and optimization while with the practical functions of residuals management, layout optimization, and barcode printing.

Specifications

• Main Blade Diameter φ300 x φ30mm
• Main Blade Speed 4500 RPM
• Scoring Blade Diameter φ90 x φ22mm
• Scoring Blade Speed 7000mm
• Mαx Depth of Cut @ 45 ° 75mm
• Max Depth of Cut @ 90 ° 100mm
• Max Rip Capacity 1250mm
• Main Table Size 800x500mm
• Main extend Table Size 800x860mm
• Side extend Table Size 500x500mm
• Dust Extraction Outlet φ120mm
• 1PH Motor Output 3KW 4HP
• Net/Gross Weight 430/500KG
• Mαin Package 1750x1030x1100mm
• Sliding Beam Size(W.x L.) 315x2600mm
• CE Style Overhead Guard Included
