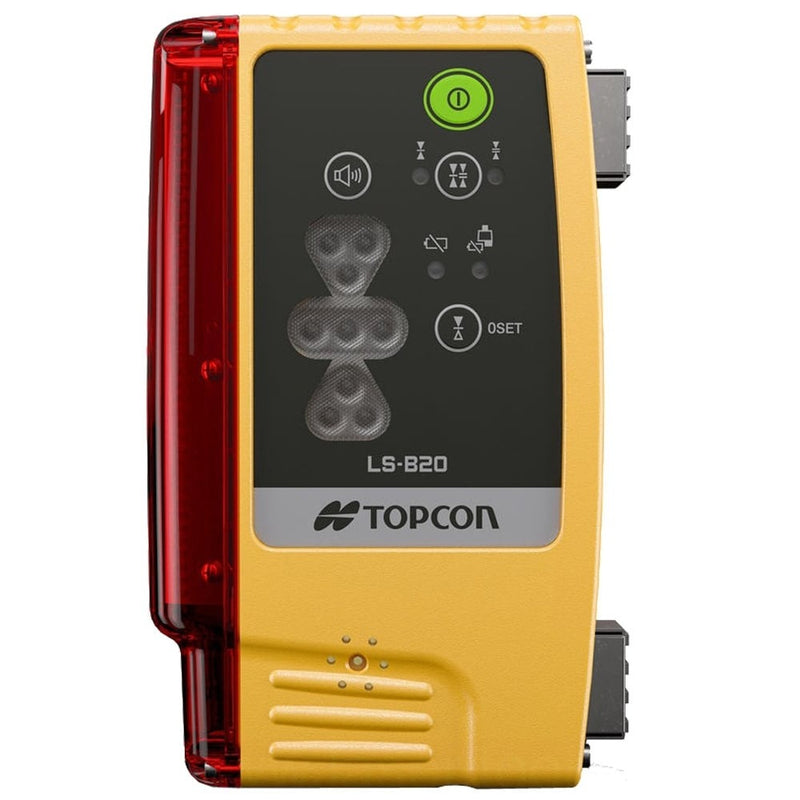

TOPCON Construction Laser Level Machine Mount Receiver Sensor LS-B20

The Topcon LS-B20 Laser Receiver (part number 063525-03) is an advanced machine control tool designed for use with rotating lasers. This rugged receiver is engineered to enhance the accuracy and efficiency of construction and surveying projects. With its superior tracking capabilities, the LS-B20 helps improve the precision of equipment like bulldozers, graders, excavators, and other heavy machinery used in grading, leveling, and excavating tasks.

Features:

• High-Performance Receiver: Compatible with rotating lasers, the LS-B20 provides real-time elevation feedback, making it ideal for machine control applications.
• Versatile Mounting Options: The LS-B20 is designed to be mounted on various machinery, enabling seamless integration with construction and surveying equipment.
• Durability: Built to withstand harsh conditions on construction sites, the LS-B20 is both weather-resistant and shockproof, ensuring long-lasting performance.
• Easy to Use: Features a clear display with both audible and visual signals for easy monitoring of elevation accuracy.
• Large Reception Area: Offers excellent reception range, ensuring consistent performance even at greater distances.
• Precision and Accuracy: Delivers accurate elevation readings, helping to reduce errors and increase project efficiency.
• Long Battery Life: Designed for extended use, ensuring reliable performance throughout long workdays.

Applications:

• Machine Control: For use with heavy machinery like graders, bulldozers, and excavators for precise grading and leveling.
• Construction and Surveying: Ideal for large-scale construction projects where precision is crucial, including road construction, site preparation, and foundation work.
• Excavation and Earthmoving: Helps to improve the efficiency and accuracy of excavation and earthmoving equipment.

Specifications:

• Detection Range: 120mm / 0.4ft
• Detection Angle: 270º
• Detection Precision:
  • Mode 1: +/- 2mm / 0.007ft
  • Mode 2: +/- 6mm / 0.02ft
  • Mode 3: +/- 12mm / 0.04ft
  • Mode 4: +/- 30mm / 0.1ft
• Laser Detection Range (Diameter): 700mm / 2300ft
• Power Source: 3AA Dry Cell Batteries (Not Included)
• Continuous Operating Time: 100 Hours
• IP-Class: IP-66
• On-Grade Matching: 40mm / 0.13ft
