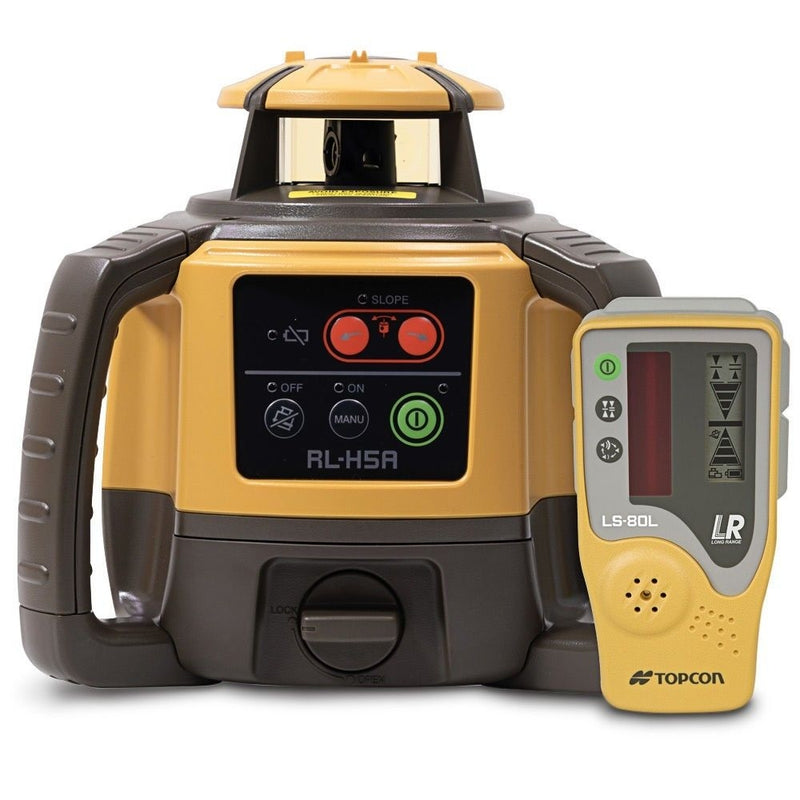

TOPCON Red Beam Construction Laser Level Kit-RLH5A Replaces RLH4C

Designed for a wide variety of applications, the new RL-H5 series are the next generation of rotating lasers from Australia’s Number 1 rotating laser brand Topcon.

The new RL-H5A is the replacement for Topcon's market leading RL-H4C. It can be used for horizontal and sloping laser applications. Slopes up to ±5% can be used in either the X or Y axis.

Grading, excavating and general construction projects are all perfect applications for the RL-H5A. With the added “Slope Matching” feature, check grade on all your flat and slope work. The 600 rpm rotation speed makes the RL-H5A a great match with any machine mounted laser sensor.

The RL-H5A's popularity lies in its ease of use. With electronic self-levelling, you press the power button and begin levelling work in seconds. If the RL-H5A gets disturbed on the job, it relevels itself automatically. The self-levelling motors are accurate to ±10 arc seconds.

The RL-H5A excels in long range operation. Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 800m (diameter) jobsite.With efficient power usage, the RL-H5A has a long battery life. The unit also gives you the option of two forms of power, 100 hours of continuous usage with D cell (4 x) batteries (included), or 60 hours with the optional rechargeable (Ni-MH) battery pack.

The RL-H5A is “jobsite tough” and with its IP66 rating, the unit can withstand dust, a sudden shower and even torrential rainfall. Topcon stands behind this reliable and accurate laser with a 5 year guarantee which is the best factory warranty in the industry.

Recommended for: Site preparation, earthworks, concreting & general construction

Suitable for: Drainage, machine control applications

Features:

• 5-year Topcon warranty
• Manual slope-match function with automatic cross-axis self-levelling
• Construction-tough build with dual handles and IP66 water-resistant housing
• LS-80L long-distance laser sensor
• Automatic height of instrument alert

SPECIFICATIONS:

• Long-range operation (800 m)
• Smart receiver
• Simple, intuitive manual slope capability
• ±10 Arc second horizontal accuracy
• Extra-long battery life (100 hours)
• Tough IP66 weatherproof rating
• Accuracy: H: ±10 arc seconds
• Self-Leveling Range: Horizontal ±5°
• Working Area: 800 m
• Rotation Speed:600 rpm
• Operating Temperature:-20ºC to 50ºC
• Dimensions:205 x 211 x 172 mm (H x W x L)
• Dust / Humidity: IP66
• POWER AND ELECTRICAL
• Operation Time: Ni-MH: 60 hours

Kit Includes:

• RL-H5A laser
• LS-80L Sensor
• Sensor Holder 6
• Batteries (D Cell)
• Carry case
