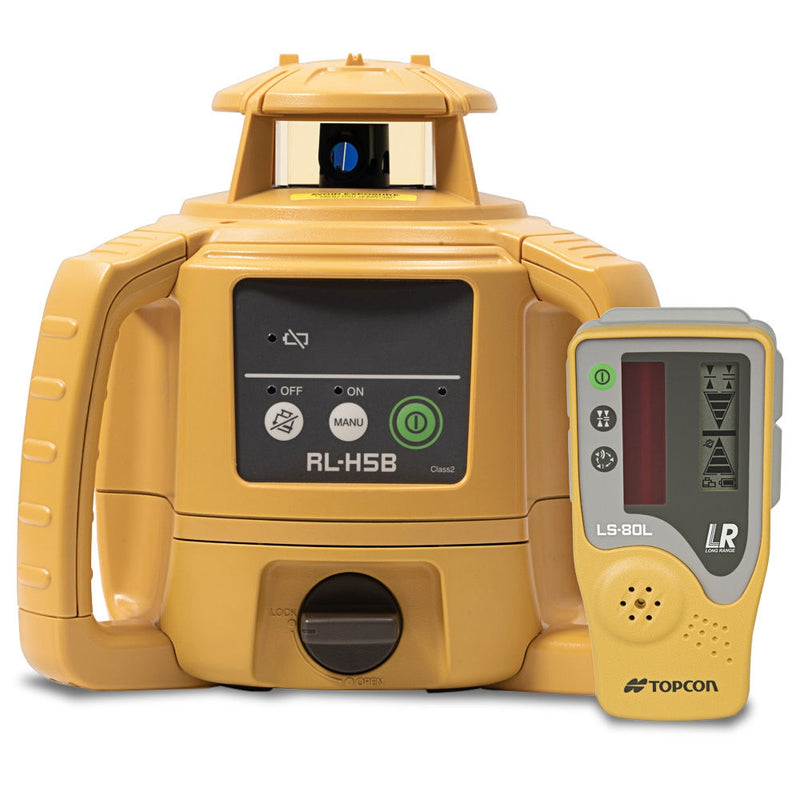

TOPCON Red Beam Construction Laser Level RLH5B -JTD

Designed for a wide variety of applications, the new Topcon RL-H5 series are the next generation of Rotating Lasers from Australia’s Number 1 rotary laser brand Topcon.

Features:

• Long-range high accuracy laser:: With great distance and high accuracy, the RL-H5 Series is simple to use for checking elevations.
• Easy to use:: With electronic self-levelling, users press the power button and go right to work in seconds. If the RL-H5B gets disturbed on the job, it re-levels itself automatically. The self-levelling motors are accurate to ±20 arc seconds.
• Long range operation:: Need to shoot elevations up to 400m from your laser? No problem! This instrument has the power and range to cover a 400m (diameter) job site.
• Long battery life:: The RL-H5B provides up to 100 hours of continuous usage with 4 x (D) cell alkaline batteries.
• All weather dependability:: With an IP66 rating, the RL-H5B is 'job site tough' and can withstand dust, a sudden shower and even torrential rainfall.

Specifications:

• Accuracy: H: ±20 arc seconds
• Self-Levelling Range: Horizontal ±5°
• Working Area: 400m (diameter)
• Rotation Speed: 600 rpm
• Dust/Water Rating: IP66
• Operating Temperature: -20°C to 50°C
• Operating Time: Alkaline (100 hours), Ni-MH (60 hours - optional)

Kit Includes:

• Topcon RL-H5B Rotating Laser Level
• Topcon LS-80L Receiver
• Topcon Receiver Clamp
• 4 x D-Cell Alkaline Batteries
• Carry Case
• Operator Manual
