The constant shape makes it possible to sharpen either on the side of the wheel or on its upper surface. Side sharpening is perfect for smaller tools such as knives, chisels, carving gouges and v-tools. The result is an edge with a completely flat bevel, instead of a slightly concave surface.
For sharpening on the side of the diamond grinding wheels, we recommend using the MB-102 Multi Base together with the jig designed for your specific tool. Both the base and the jigs give you support and control throughout the sharpening process.
Rust protection for increased service life
All diamond grinding wheels are supplied with 150 ml of ACC-150 Anti-Corrosion Concentrate. Always add the concentrate to the water when sharpening with water to prevent rust on the grinding wheel. Add 10 ml (0.02 pints) of concentrate to 250 ml (0.4 pints) of water (~4%). We recommend always using water when sharpening with diamond grinding wheels if possible, as it both prolongs the service life of the wheel and provides a smoother sharpening surface. You can also sharpen without water.
WHAT IT COMES WITH

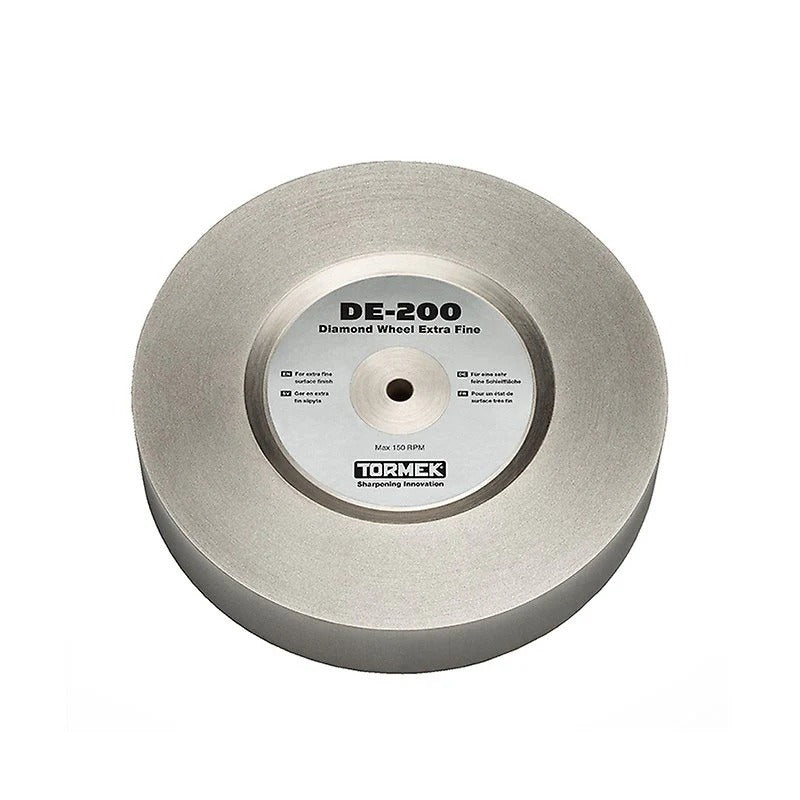

DE-200 Diamond Wheel Extra Fine comes fully assembled and ready to use.
- 1 bottle of ACC-150 Anti-Corrosion Concentrate which makes the water anti-corrosive.
- Information Tormek Diamond Wheels EN.
SPECIFICATIONS
- Dimensions Grinding Wheel:Diameter: 200 mm (7 7/8â€) Width: 40 mm (1 5/8â€)
- Weight:Shipping weight 3,06 kg
- Colour:Silver
- Material:Machined steel core coated with diamond
- Grit:1,200 grit
- Warranty:2 year warranty
