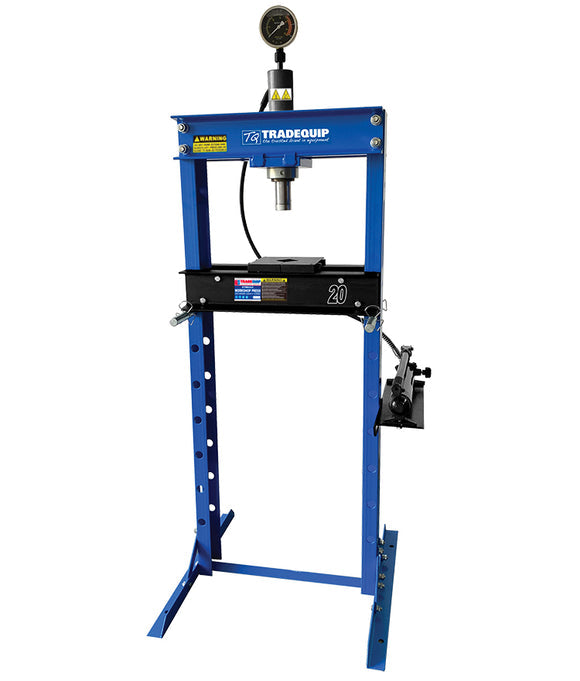

TradeQuip 20,000kg Hydraulic Workshop Press 1063T

The TradeQuip 1063T is a 20,000kg hydraulic workshop press designed for professional bearing service, straightening, bending, pressing and general workshop fabrication. The adjustable bed and laterally adjustable ram help position work accurately across a range of automotive and industrial jobs.

Features

• 20,000kg safe working capacity
• Heavy-duty steel H-frame
• Hydraulic ram with pressure control
• Adjustable bed height
• Laterally adjustable ram
• Pair of bed plates included

Specifications

• Working range: 43-882mm
• Overall height: 1795mm
• Overall width: 780mm
• Overall depth: 690mm
• Bed width: 505mm
• Bed gap: 105mm
• Bed working area: 358 x 105mm
• Press head diameter: 45mm
• Piston ram stroke: 185mm
• Ram lateral adjustment: 180mm
• Net weight: 90kg
