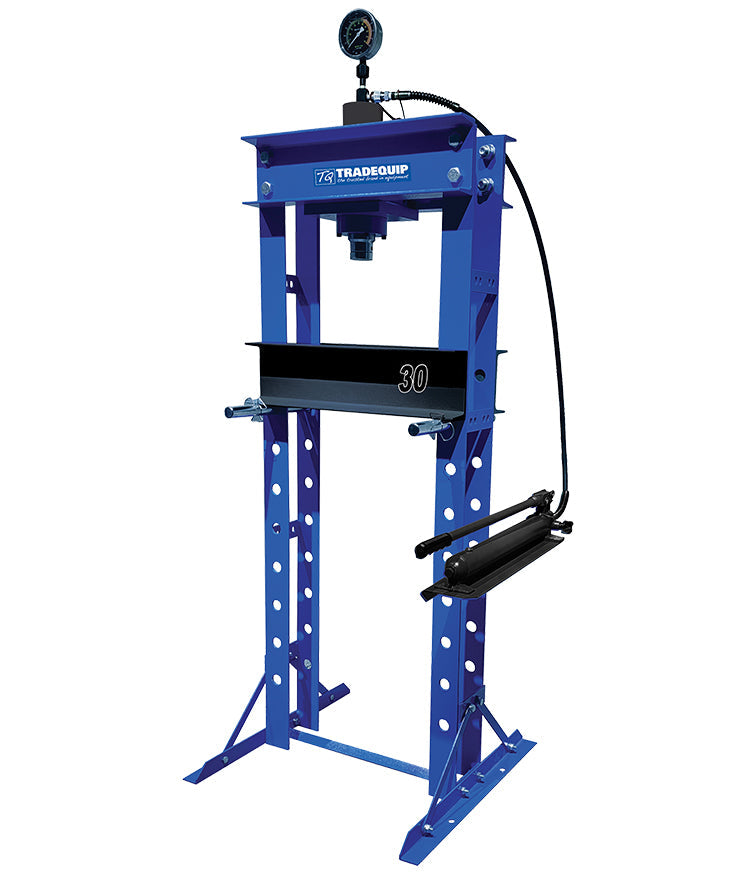

TradeQuip 30,000kg Hydraulic Workshop Press 1064T

The TradeQuip 1064T is a heavy-duty 30,000kg hydraulic workshop press designed for straightening, stamping, bending, pressing and bearing service in professional workshops. Its high-grade steel H-frame, polished hydraulic ram and adjustable bed provide a versatile setup for automotive, agricultural and industrial applications.

Features

• 30,000kg safe working capacity
• Heavy-duty high-grade steel H-frame
• Large-diameter hydraulic cylinder
• Polished and chromed piston ram
• Integrated pressure gauge
• Reinforced head bolster
• Pair of bed plates included
• Oil, grease and dirt-resistant finish

Specifications

• Working range: 50-1030mm
• Overall height: 1950mm
• Overall width: 830mm
• Overall depth: 660mm
• Bed width: 455mm
• Bed gap: 154mm
• Press head diameter: 56mm
• Ram lateral adjustment: 70mm
• Piston ram stroke: 170mm
• Net weight: 138kg
