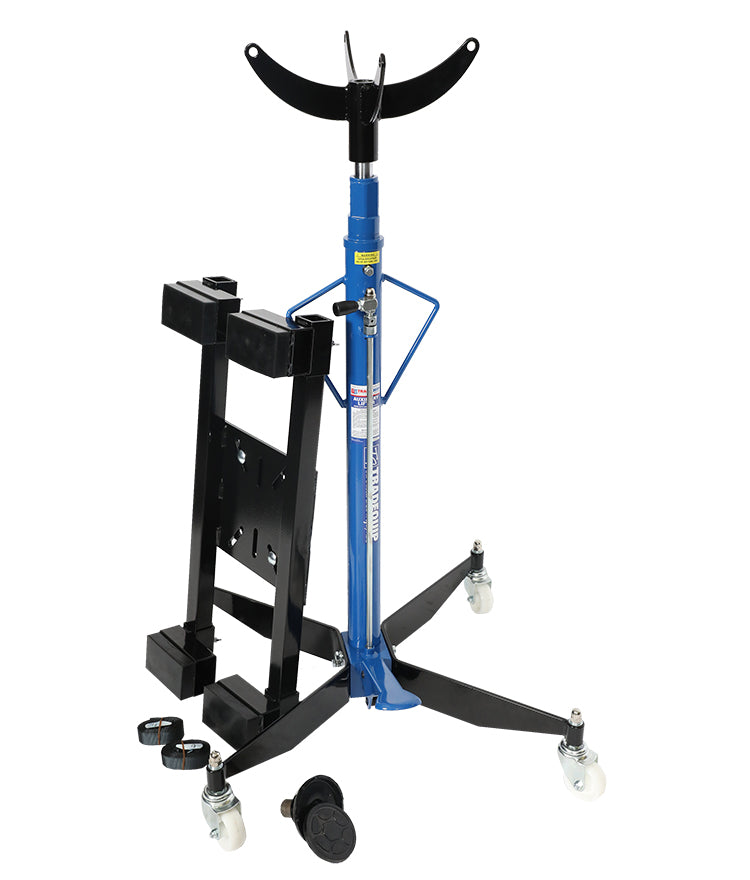

TradeQuip 500kg Auxiliary Lifter Kit 2068T

The TradeQuip 2068T is a 500kg hydraulic telescopic auxiliary lifter designed for temporary support of vehicle components during removal and installation. Its foot-operated quick-lift pump leaves both hands free for positioning, while the controlled lowering system provides precise descent.

Features

• 500kg safe working capacity
• Foot-operated hydraulic quick lift
• Extra-slow hand-controlled lowering
• Four-prong mounting cradle
• Cup-style lift pad
• Adjustable fuel tank adaptor
• Full-swivel nylon castors
• Chrome-plated hydraulic ram

Specifications

• Minimum height: 1175mm
• Maximum height: 1985mm
• Cradle size: 362 x 362mm
• Lift pad diameter: 107.5mm
• Fuel tank holder: 812 x 352mm
• Base: 540 x 570mm
• Net weight: 35.3kg

Important: Designed for partial temporary support only. It is not a load-support stand and not a stand-alone transmission lifter.
