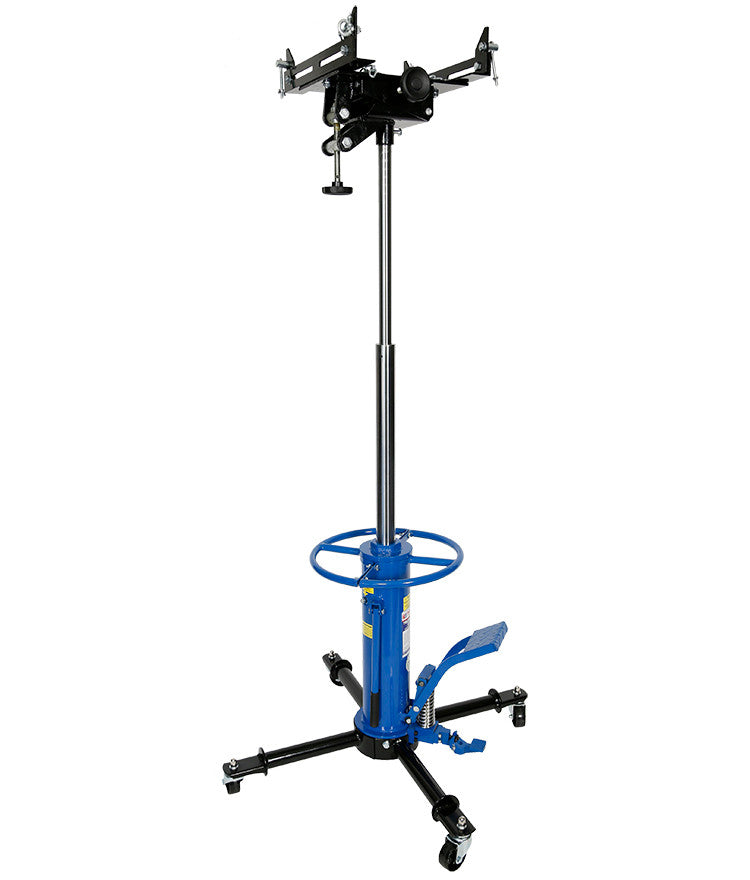

TradeQuip 500kg Transmission Lifter 2022T

The TradeQuip 2022T is a heavy-duty two-stage hydraulic transmission lifter designed for passenger vehicles including RWD, FWD and AWD applications up to 2,300kg GVM. Its tall working range, adjustable cradle and foot-operated hydraulic system make it suited to professional transmission removal and installation under vehicle hoists.

Features

• 500kg rated capacity
• Two-stage telescopic hydraulic ram
• Foot-operated hydraulic pump
• Adjustable transmission cradle
• Two-way tilt adjustment
• Load-restraint chains
• Swivel castors for workshop manoeuvrability

Specifications

• Vehicle suitability: RWD/FWD/AWD, GVM under 2,300kg
• Minimum height: 895mm
• Maximum height: 1875mm
• Cradle size: approx. 240 x 340mm
• Tilt: 7° left / 15° right
• Net weight: approximately 73kg

Designed for removal, installation and transport of transmissions in the lowered position when used with a properly supported vehicle.
