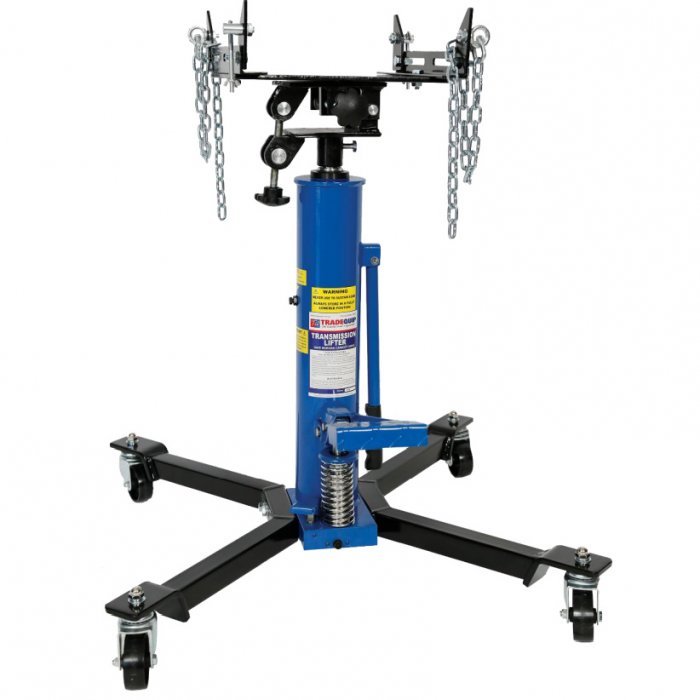

TradeQuip 500kg Transmission Lifter 2059T

The TradeQuip 2059T is a two-stage hydraulic transmission lifter designed for passenger vehicle transmission removal, installation and workshop handling. Rated for RWD and FWD vehicles under 2,000kg GVM, it combines a foot-operated hydraulic pump with an adjustable cradle and mechanically controlled descent for safe, precise positioning.

Features

• 500kg rated capacity
• Two-stage telescopic hydraulic lift
• Foot-operated pump for hands-free lifting
• Adjustable lifting platform
• Load-control chains
• Four swivel castors for stability and manoeuvrability
• Mechanically controlled safe descending speed

Specifications

• Vehicle suitability: RWD/FWD, GVM under 2,000kg
• Minimum height: 820mm
• Maximum height: 1768mm
• Cradle size: approx. 360 x 250mm
• Forward tilt: 9°
• Rearward tilt: 17°
• Net weight: 52kg
• Gross weight: 59kg

Intended for transmission removal, installation and transport in the lowered position only. Not designed for supporting unrelated vehicle loads.
