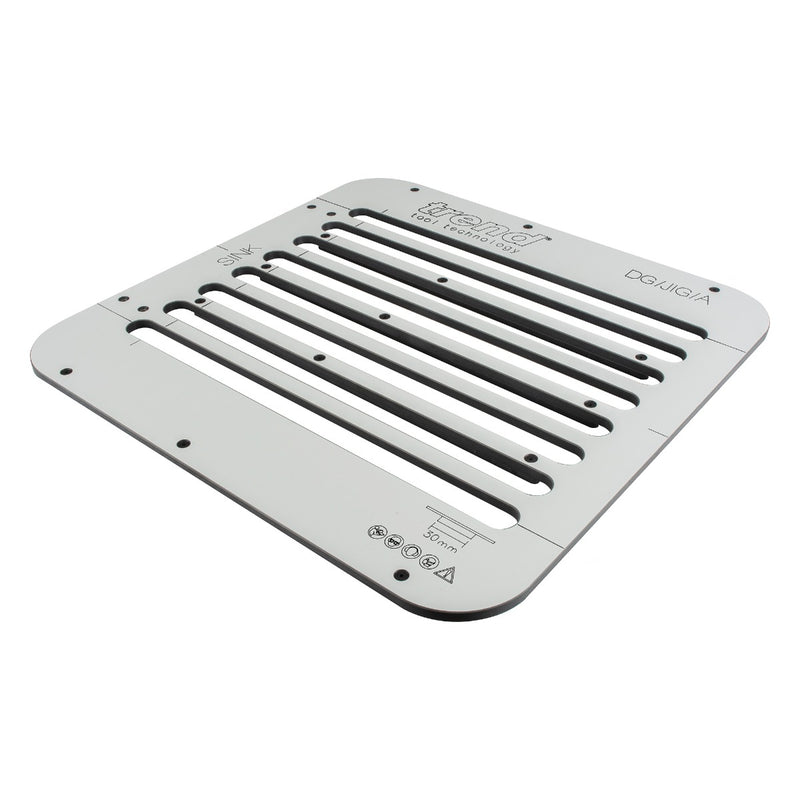

TREND DG/JIG - Drainer Groove Jig

Features:

• CNC-Machined Compact Grade HPL provides precision, strength and durability.
• 3 Support Runners to minimise jig deflection and maximise router support.
• 8 Drainer Grooves at 50mm pitch and 455mm long.
• Etched Sight Lines for quick setup.
• In-Built 0.5 ° Fall to minimize setup time and remove the need for spacers.
• Edge Guide Fixing Holes to accommodate user-made edge guides for repetitive installations.
• Requires: ½â€ router (min.1300W), cutter and 2 x F-Clamps.
• Cutter options: C056AX1/2TC (9.5mm radius), C053CX1/2TC (6.0mm radius), C306X1/2TC (flat bottom).

Specifications:

Fall: 0.5 degree
Groove Pitch: 50 mm
Groove Length: 445 mm
Jig Length: 625 mm
Jig Width: 585 mm
Jig Thickness: 12 mm
Weight: 4.3kg
