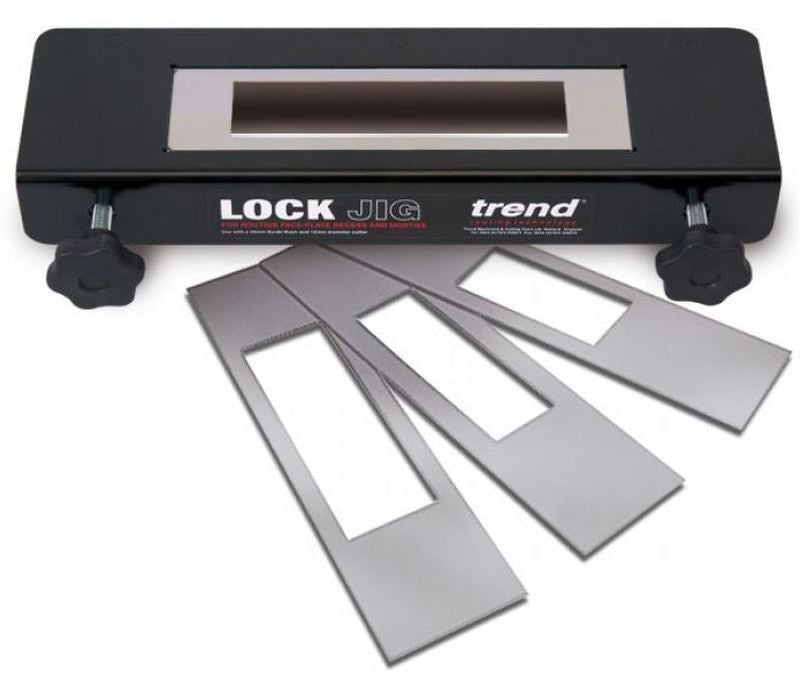

TREND LOCK/JIG Trade Lock Recessing Jig

FEATURES
• This jig uses a set of interchangeable templates & with a router will cut the mortise & face-plate recess for popular door locks.
• For most common sash mortises & dead locks, with up to 3 inch deep mortises & a 7/8 inch or 1 inch face-plate.
• Deeper mortises can be achieved with a suitable size of auger bit.
• Fast, clean & accurate results on doors 34mm to 58mm thick, even in hardwood.
• Steel plates & body.
• An auger bit and drill is required to complete deep mortises.
• The jig requires a 1/2- inch plunge router with a 80mm plunge, fitted with a 30mm guide bush with 6mm spigot & 12mm diameter long reach cutter.
• A 1/4-inch plunge router can be used for the face plate but will not achieve full depth of mortise.

CONTENTS
• 1 x Guide Bush Collar
• 12 x Face Plate Templates
• 4 x Mortise Templates
• 6 x Spacer Fingers

SPECIFICATIONS
• Door thickness min. 34 mm
• Door thickness max. 58 mm
• Template outer size 234.3 x 59.8 x1.5mm
• Includes templates for locks having the following face-plate dimensions:

Metric (Imperial approx.) Template
• 22.2x156 mm (7/8"x 1/8") 1
• 22.5x152.5 mm (7/8"x 6") 2
• 25.4x121 mm (1"x 4 3/4") 3
• 25.4x127.5 mm (1"x 5") 4
• 25.4x133.5 mm (1"x 5 1/4") 5
• 25.4x145 mm (1"x 5 3/4") 6
• 25.4x153 mm (1"x 6") 7
• 25.4x156.5 mm (1"x 6") 8
• 25.4x165.5 mm (1"x 6 1/2") 9
• 25.4x177 mm (1"x 7") 10
• 25x57.5 mm (1"x 2 1/4") 11 UPPER
• 26x56.5 mm (1"x 2 1/4") 11 LOWER
• 25.6x162mm (1"x 6 3/8") 12

Mortise Lock Dimensions
• Imperial (Metric) Template
• 16x72 mm* (5/8" x 2 7/8") A
• 16x107 mm* (5/8" x 4 1/4") B
• 19x78 mm* (3/4" x 3 1/8") C
• 19x109 mm* (3/4" x 4 1/4") D
• *These are maximum mortise lock case (body) lengths, unless radius ends are squared with a chisel.
• Actual length of mortise is 7mm longer.
