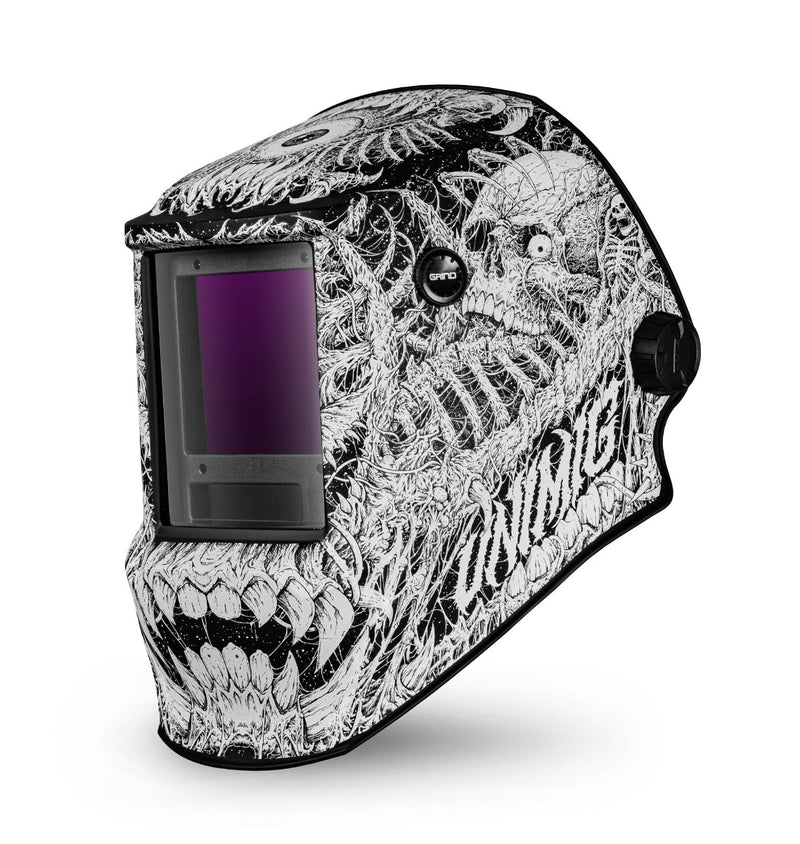

UNIMIG Auto Darkening Welding Helmet-Tradie Series-Carnage

Keep your eyes and face protected during every weld with our Trade Series welding helmets. The 1/1/1/1 optical classification combined with the large 100×83.4mm viewing lens means you get superior visibility in every situation. You’ll also be abe to save your favourite shade settings with the memory states, so your setup is instant. Choose from a sleek, clean professional black or pick from one of the eye-catching graphics.

Features:

• 1/1/1/1 Classification - Superior optical clarity with a 1/1/1/1 classification. Get an Auto-Darkening filter (ADF) That's scored top marks across the board for crystal-clear view of your weld at every angle
• Memory States - Store up to three of your most frequentlu used shade settings with the memory state buttons and have your helmet ready to go in an instant.
• 100 x 83.4mm View Size - Superior visibility in every situation. the 100 x 83.4mm viewing area lets you see every weld with complete clarity.
• External Grind Button - Seamlessly switch to grind mode with the click of a button. When the helmet is in the grind mode a small LED will illuminate, so you don'd need to take the helmet off to check.
• 4 Arc Sensors - Detect every arc instantly. The four optimally positioned arc sensors trigger the lens, darkening it and keeping your eyes sheilded from the start, even when you're out of position
• Backup Battery - A CR2450 Back up battery improves the performance and reliability of the auto-darkening filter.
• 4 Point Harness - Get the perfect fit and stay comfortable for hours. Adjust all 4 points of contact to suit you and have weight spread more evenly, minimising neck strain.

Specifications:

• Filter dimentions: 114 x 166 x 9.5mm
• View Size: 100 x 83.4mm
• Arc Sensors : 4
• Classification: 1/1/1/1
• Light State: 4
• Dark State: 5 - 13
• UV/IR Protection: DIN15
• Time from Light to Dark: 0.04ms
• Time from Dark to Light:  0.1 - 0.9s
• Sensitivity Delay: Adjustable (1-5 for low-high)
• Power Supply: Solar Cells & CR2450 Replacable Batterty
• Operating Temperature: -10 ºC to 65c
• Storage Temperature: -20 ºC to 85 ºC
• Shade Control: Yes
• Grind Mode: Yes (External)
• Minimum TIG Amperage: 3A
• Standards:
  • AS/NZS 1337.1 B (High Impact)
  • AS/NZS 1338.1 (Auto-Darkening)
