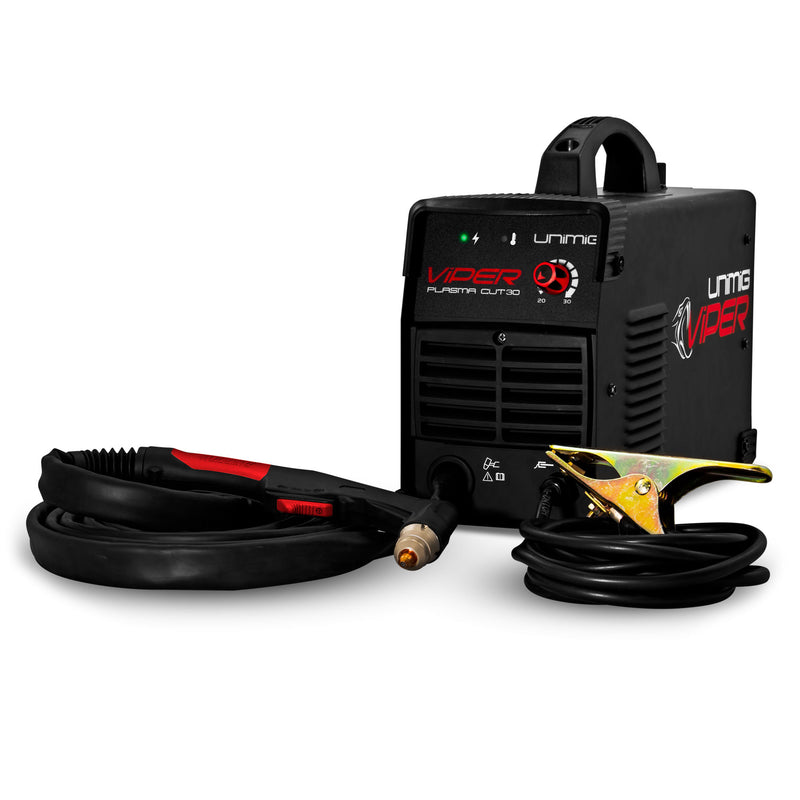

UNIMIG VIPER Cut 30 Plasma Cutter -KUPJRVC30

The Unimig VIPER™ CUT 30 plasma cutter is specifically designed for the DIY enthusiast. Fitted with a 10 AMP plug, it’s never been easier to set up a plasma cutter at home or in your workshop.

Bigger doesn’t always mean better – a more effective output has allowed the VIPER™ CUT 30 to clean cut up to 12mm Mild Steel.

• Plug in and play. A 10 AMP power plug can be used on any domestic outlet. It’s perfect for the DIY home handyman or the professional welder looking for a machine that can be used almost anywhere.
• Pilot Arc Start lets you start the arc before contacting the work piece. This gives you better control of the torch, especially on materials with uneven or curved surfaces.

Specifications:

• Voltage: 240v - 1 +/- 15%
• Power: 7.5KVA
• Duty Cycle @ 40°c: 30% @ 30Amps
• Output Voltage: 310
• Insulation Class: F
• Protection Class: IP21S
• Plasma Arc Starting: Pilot Arc
• Air Flow Draw Off (l/min): 170
• Air Flow Pressure (Bar): 5-6 (70-87 psi)
• Cutting Thickness - Clean (mm): 12
• Cutting Thickness - Severance (mm): 14
• Dimensions (L x W x H): 460mm x 160mm x 320mm
• Weight: 11.6kg

Includes:

• 1 x VIPER CUT 30 Power Source
• 1 x 4 metre Direct Connect SC30 Plasma Torch
• 1 x 4 metre Direct Connect 3M Earth Lead
• 1 x Instruction Manual
