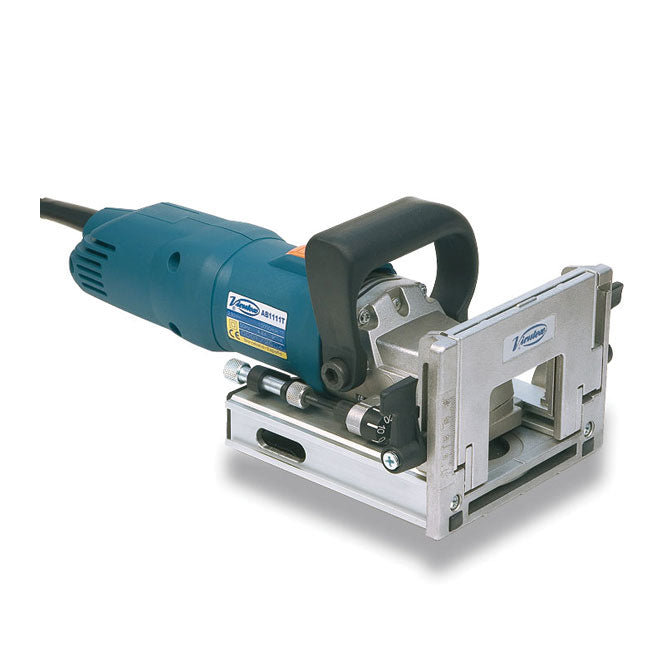

VIRUTEX Biscuit Jointing / Slotting Machine AB111N

The jointing machine AB111N is specially designed for grooving panels in any position. Thanks to the design of its micrometric fence, which can be adjusted at any height and angle, and to a graphic signs it is not necessarry to take exact measurements, due that it is possible a lateral deplacement of 2 cm for adjusting the joint, once made the groove. A pre-adjusted stopper allows to select the different grooving depths fast and easy.The AB111N is equipped with a 900W motor with electronic control system which maintains the speed constant independently to the working load, allowing to make the grooves in a easy and precise way in all kind of woods. The machine can work usually on panels of 16, 19 and 22 mm thickness, but it is possible to work on thicker pieces thanks to the movable fence which allows to center perfectly the grooves. It is advisable to make three or more grooves to have stronger joints.

• Dimensions 430 × 350 × 160 mm
  Brand: Virutex
• Warranty: Virutex
• Tool/ Equipment Type: Biscuit Joiner
• Power Source: 240V 50Hz Single Phase
• Motor Power (Input): 800W
• Weight (Net): 2.6KG
• Blade (Main) - Diameter (Max.): 100mm
• Blade (Main) - Bore Size: 22mm
• Standard Inclusions: Stackable Transport Carry Case

• Carbide Blade 100 x 22 x 4, of 2 teeth and 2+2 spurs,
• External dust collector connector
• Stackable Transport Carry Case
