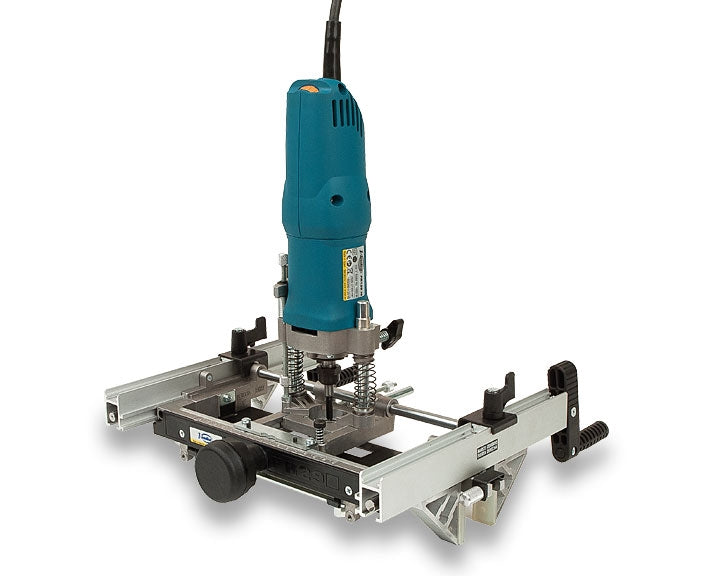

VIRUTEX Door Hinge Router/Trimmer System- FR129VB

Installation of concealed hinges in fast and one step operation. No need to change the plate.
Special router for installation of all kind of hinges on frames and door leaves. Easy fitting of 3 or 4 hinges per door (right or left open), without measurements and marking.
Double depth stopper allows to mortise both depths of concealed hinges in one operation, without changing the plate. The router is also prepared for fitting any kind of traditional hinges.
New and easily adjusted clamp system holds the router perfectly on the door and frame, without damaging its surface.Installation of the plate is also very fast, itâ„ ¢s fixed and ready to use by pressing it inside the guide.
Router itâ„ ¢s equipped with strong 1000 W motor, electronic speed regulation and electronic system to mantain constant speed under load.
For fitting concealed hinges longer than 160 mm in only 2 steps.
For fitting cremone locks.
For fitting strikes plates over 152 mm.
Spacers for rabbets highest than 13 mm.

Carrying case included.

• Double insulationInput power:1000
• WNo-load speed:14000 - 27000/min
• Chuck collet:8 mmMax. bit diameter:26 mm
• Max. trimming dim.:165x74 mm
• Max. trimming deth:11 mm
• Max. trimming depth (with kit for invisible hinges)40 mm
• Max. clamp opening:200 mm (250 mm*)
• Min.clamp opening:33 mm
• Weight:4,3 Kg

Standard equipment
Carbide bit 7.6 mm and guide ring, 2 recess distributor rods for 3 or 4 hinges, service keys, carrying case.
