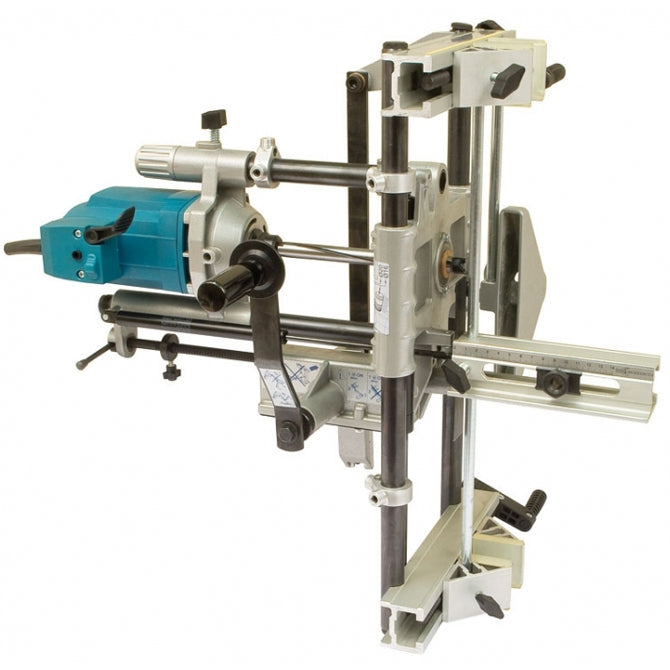

VIRUTEX Powered Lock Mortiser Machine-FC116U -WWD

The VIRUTEX FC116U Powered Lock Mortiser is a portable machine designed for fast, precise cutting of lock mortises in doors, both on-site and in the workshop. Its fixing system allows mortising on already-hung doors while protecting the door surface. Quick measurement adjustment supports repeat mortising, and the machine can also work horizontally.

An adjustment system helps centre the machine on grooved or overlapping doors. Interchangeable optional cutting heads allow different mortise widths. The supplied UT16I accessory enables transverse holes for handles and other fittings.

Specifications

• Double insulated
• Input power: 1,100 W
• Maximum bit size: 1 1/4 in
• Maximum mortising depth: 0–5 in
• Maximum mortising length: 7 in plus cutter
• Maximum clamp opening: 7 1/2 in
• No-load speed: 23,000 rpm

Standard equipment

Includes a 1 in carbide lock mortiser bit, locking bar for repeat-height mortises, rubber surface protectors, UT16I accessory, service keys and dust-collector connection.

Looking for another cutting width? Compatible VIRUTEX FC116U replacement cutting heads are available separately.
