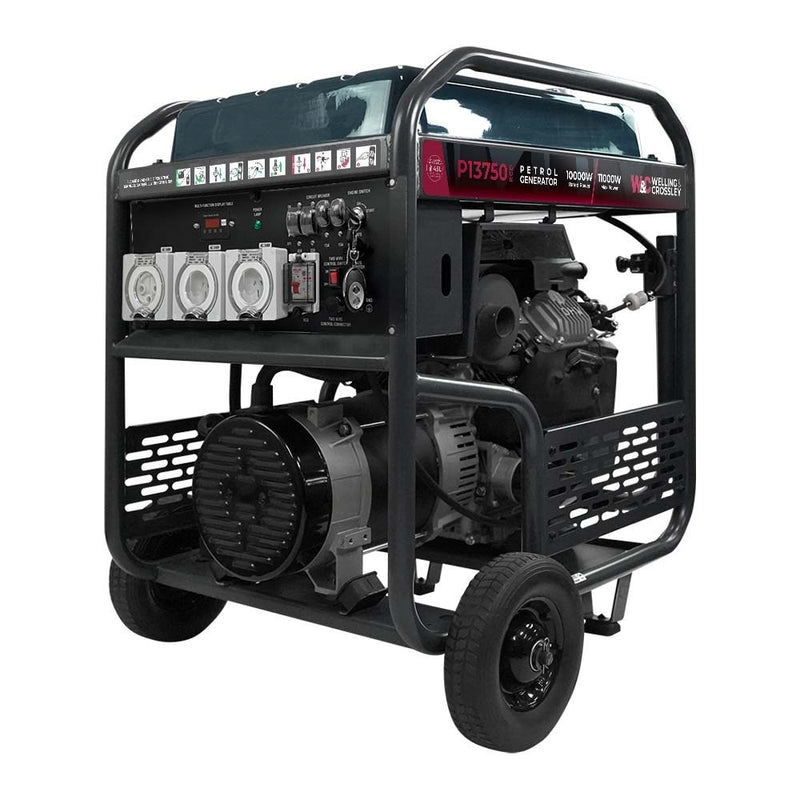

WELLING & CROSSLEY 13.75kVA AVR Generator with Electric Start & RCD-Jobsite Spec

The latest addition to the Welling & Crossley portable generator range packs a lot of power and features into a neat unit, making these an economical choice for your power needs.

APPLICATIONS

• Compliant with safety regulations for work areas and construction sites
• Off-grid solar pumping system backup
• Power irrigation systems, farm equipment and agriculture machinery
• Outdoor events for lights, sound systems etc
• Larger mobile businesses or market stalls to power lights and appliances
• RCD’s cannot be used in conjunction with power boards configured with surge protection

FEATURES

• Euro 5 emission compliant petrol electric start engine with long-range fuel tank for longer run times
• Automatic Voltage Regulator for stable power output
• Steel frame with fold-out wheelbarrow kit (wheels & handles) included for easy transportation and mobility, even on rough terrain
• 2 x IP66 15A, 1 x IP66 32A
• USB A and USB C outlets
• Large long range 45L fuel tank
• Digital V/F/T Display (Volts, Frequency, Time)
• Low oil alarm, overload alarm, output indicator
• 2 year Welling & Crossley Warranty (battery excluded)

SPECIFICATIONS:

• Product Code: 811988
• Model Rating:    13.75kVA
• Max AC Output:    11000W
• Rated AC Output:    10000W
• Voltage:    240V AC
• Type:    Open Frame AVR with RCD
• Frequency:    50Hz
• Connections:    2 x IP66 15A,1 x IP66 32A,1 x USB-A (18W), 1 x USB-C (15W)
• Engine:    WC-690
• Type:    Twin cylinder, 4 stroke, OHV air-cooled petrol
• Displacement:    688cc
• Speed:    3000rpm
• Low Oil Protection / Warning:    Fitted
• Ignition System :   TCI
• Starting Type :   Recoil / Electronic / 2-Wire / Wireless Remote
• Fuel Tank Capacity:    45L
• Fuel Consumption:    2.2 L/hr @ ¼ load
• Product Dimensions :   810 x 640 x 920mm
• Dry Weight :   160kg
• Operating time at 25% Load:    27hr
• Noise Level @ 7m:    ＜90dBA
• Limited Warranty:    2 Years
• Oil :   1.5L SAE10W-30
• Spark Plug:    NGK BPR6ES
• Fuel Type:    Petrol - 91 octane unleaded
• Power Factor:    0.8
• Packaging Dimensions :   790 x 620 x 790mm
