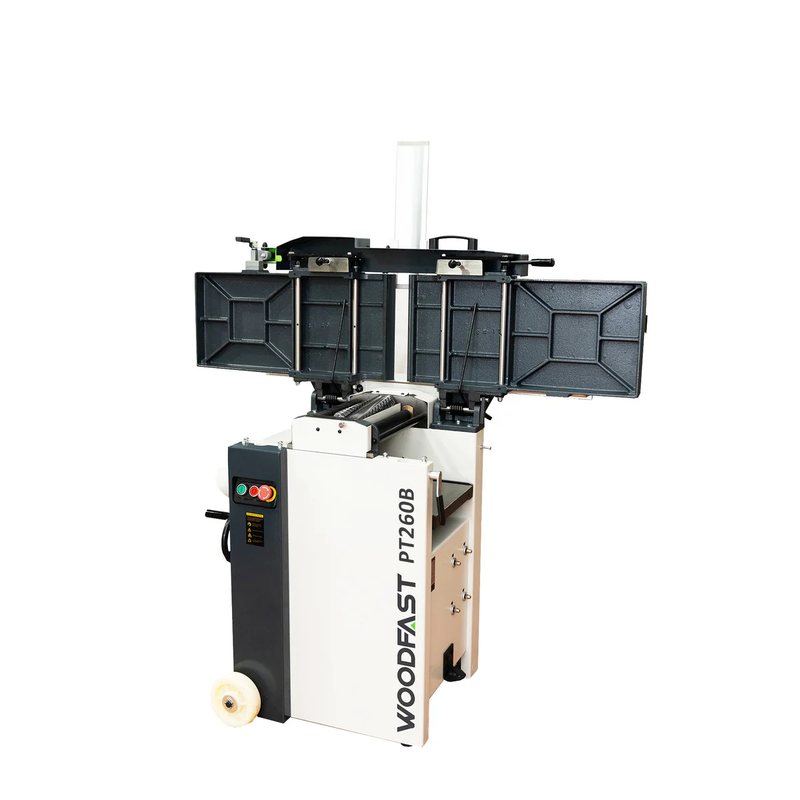

Introducing the Woodfast PT260B Planer Thicknesser - your all-in-one solution for precision woodworking!
This powerful machine combines a planer and thicknesser in one, allowing you to effortlessly transform rough-cut wood into smooth, straight-edged boards. With its sturdy construction and efficient design, the PT260B is built to handle even the toughest woodworking projects.
The PT260B has a 260 x 255mm capacity. With the convenience of single handed table lift (no need to remove the fence), switching from surface planning to thicknessing cannot be easier! This versatile machine features an extra large aluminium extruded fence with centred controls and cam locking for quick adjustments. It’s a great machine to choose for the serious woodworker and the busy trade workshop.
Feature
- 260mm (10") wide cutting capacity
- Automatic material thickness measurement for quick and easy setup via digital height readout.
- Micromillimeter adjustment of material feeding
- Large dust collection port for efficient dust extraction
- Emergency Stop
- Dual Table Lifting System - lifts both tables at the same time when switching from one function to another.
- Spiral Head Cutter Block
- Thicknessing Capacity is 4mm-225mm x 310mm width
- Precision-machined cast iron (in feed and out feed) tables for smooth feeding and reduced vibration
- Feed Rollers On / Off Lever
Specification
- Cutting capacity: 260mm (10") wide
- Maximum cutting depth: 4mm (5/32")
- Table size: 560 x 260mm
Experience the convenience and precision of a combined planer and thicknesser in one machine!
Looking for even versatility in your woodworking projects? Consider upgrading to the Woodfast PT310A or PT410A Planer Thicknesser - the big brothers to the PT260B!
Optional
- Mobility Kit (shown pictured - sold separately)
- Outfeed Thicknesser Extension Table
- Digital Readout
Type: Planer / Thicknesser
Technical - Main
Blade Type: Spiral Head Cutter Block
Motor Power (Output): 3HP (2.2kW)
Power Source: 240V 50Hz Single Phase
Table Size: 545 x 307mm (Thicknesser)
Electrical Connection: 10 Amp Plug
Cutting Capacity - Height: 225mm
Technical - Spiral Head Cutter Block
Blade- Cutter Head Block - Blade Size: 15mm x 15mm x 2.5mm (150mm Radius)
Blade - Cutter Head Block - Diameter: 70mm
Blade - Cutter Head Block Speed (RPM): 5500
Blade - Cutter Head Block - No. of Blades / Tips: 56
Product Weight (Net Weight): 175kg
Country of Origin: Manufactured in China
Dust Hose Inlet Diameter: 1 x 100mm (Can be used in both Planing and Thicknessing Mode)
Other Requirements: Dust Collector
Warranty (Australia): 3 Years (Home User) or 1 Year (Commercial User)
Shipping Weight (Gross): 217kg
Packaging: Wooden Box / Crate with Skid
Requires a Skid to Ship
Requires a Forklift / Tail Lift to Unload
Shipping Notes: This product exceeds hand unloading limits and requires a tail lift truck or forklift at the unloading location (Receivers end). This product requires a skid / pallet / crate in order to safely transport via road.
